Installing Cylinder Head Cover For Cylinders 4 - 6

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

Replace sealing rings, seals and O-rings.

Information

Attach all tie-wraps at the same places during installation.

Information

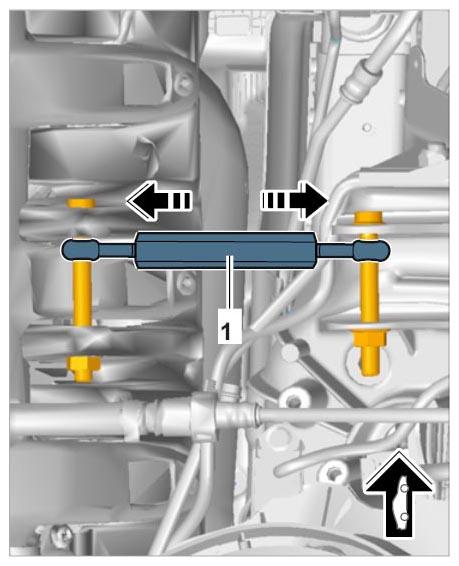

For better access in the engine compartment, use support 9866 .
Fit support -1- instead of torque support .
The engine can be moved by turning the hexagon (a/f 17) to the left or right -arrows- .

Fig 1: Moving Engine With Special Tool (9866)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Install cylinder head cover.

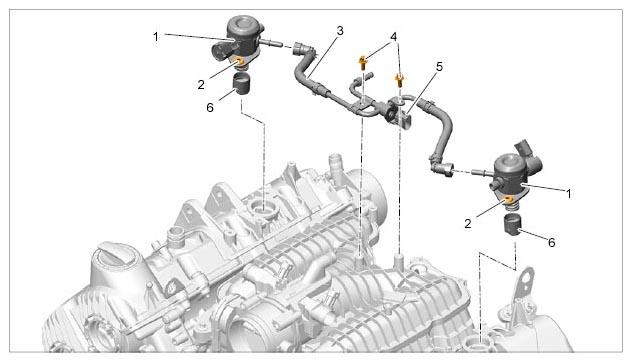

1. 1.1. Insert cam follower -6- for high-pressure pump into the cylinder head cover.

  Fig 2: Identifying Cam Follower For High-Pressure Pump
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Information
- Replace aluminum screws .
- Always observe specified tightening sequence .

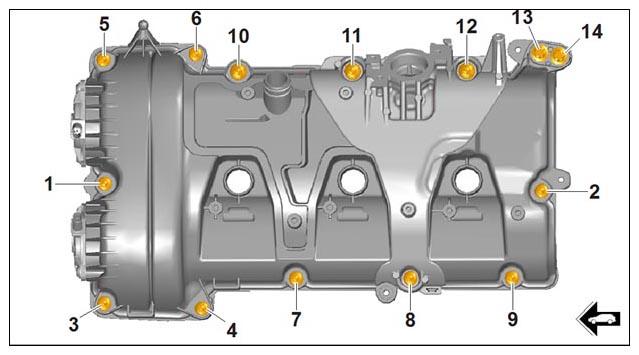

Tighten fastening screws -1 to 14 - on the cylinder head cover one after the other (depending on version: see TECHNICAL VALUES ).

Fig 3: Valve Cover Screws Tightening Sequence (Cylinders 4-6)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information
- Fuel lines must not be bent .
- Bent fuel lines must be replaced .

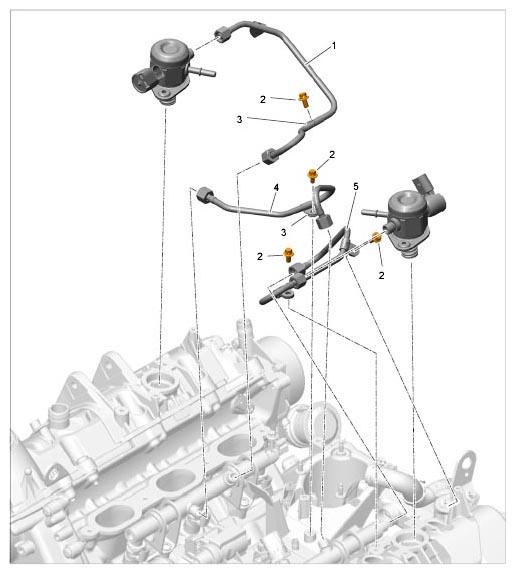

Position high-pressure line -5- .
Tighten union nut securing high-pressure line -5- to fuel collection pipe. Initial Tightening 20 Nm (15 ft. lb.) Final Tightening +35 Nm (+26 ft. lb.)

Fig 4: Identifying High-Pressure Pump And Lines
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

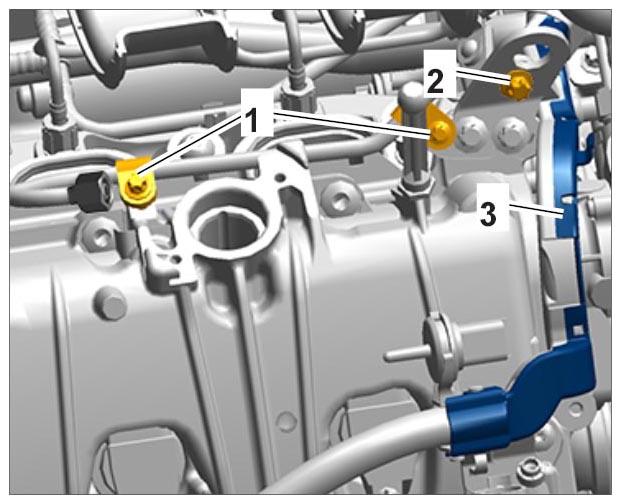

Position B+ wiring harness -3- .
Tighten fastening screws -1- and -2- . Tightening Torque 10 Nm (7.5 ft. lb.)

Fig 5: Identifying High-Pressure Line
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
