Component Overview

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

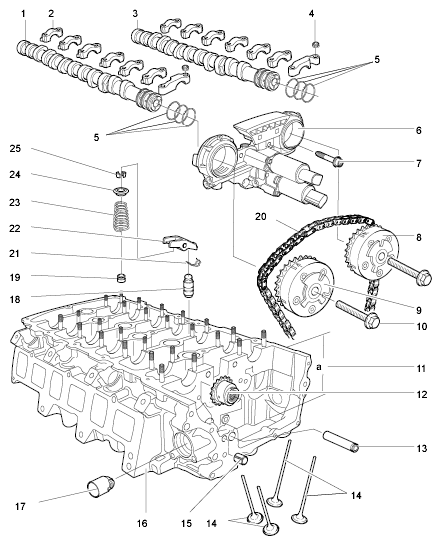

Fig 1: Overview Of Cylinder Head (V6 DFI Engine)
G09932543Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Intake Camshaft
  2. Camshaft Bearing Cover
  3. Outlet Camshaft
  4. Hexagon Nut On Camshaft Bearing Cover
  5. Sealing rings (40 x 1.5)
  6. Timing Chain Housing
  7. Oval-Head Screw On Timing Chain Housing
  8. Outlet Camshaft Controller (Marking 32 A)
  9. Intake Camshaft Controller (Marking 24 E)
  10. Hexagon-Head Bolts On Camshaft Controllers
  11. Cylinder Head Height (min. Height a=139.9 mm)
  12. Drive Gear Wheel For High-Pressure Pump
  13. Bearing Shaft
  14. Valves
  15. Dowel Sleeve
  16. Cylinder Head
  17. Pump Tappet
  18. Support Element
  19. Valve Stem Seal
  20. Timing Chain
  21. Safety Clip
  22. Rocker Arm
  23. Valve Spring
  24. Valve-Spring Plate
  25. Valve Collets
