Preliminary Work

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove belt tensioner. → 137319 REMOVING AND INSTALLING BELT TENSIONER

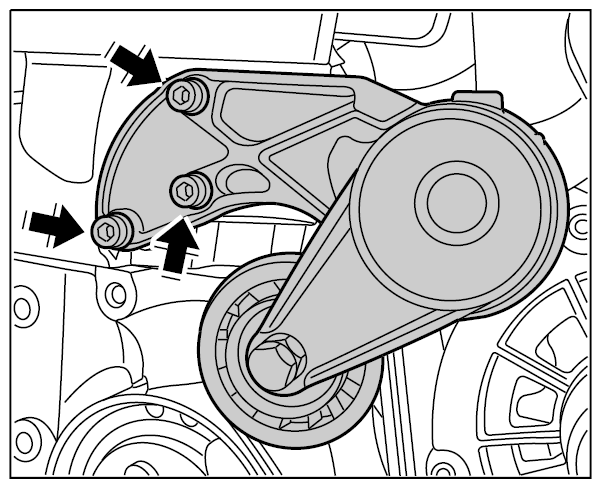

    Arrow  - Cheese head bolts on belt tensioner

    Fig 1: Locating Belt Tensioner Bolts
    G09932515Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Release the engine wire harness around the cylinder head. → 975219 REMOVING AND INSTALLING WIRE HARNESS FOR ENGINE
  3. Remove bar ignition modules. → 282020 REMOVING AND INSTALLING BAR IGNITION MODULES
  4. Remove intake-air distributor. → 244619 REMOVING AND INSTALLING INTAKE-AIR DISTRIBUTOR
  5. Remove cylinder head cover (valve cover). → WM 158219 REMOVING AND INSTALLING CYLINDER HEAD COVER (VALVE COVER)
  6. Remove upper  timing-case cover. → WM 153319 REMOVING AND INSTALLING CHAIN HOUSING COVER
  7. Position cylinder 1 to compression TDC. → WM 150502 CHECKING THE TIMING
  8. Remove timing chain from the camshaft controllers and set it aside. To do this, remove both camshaft controllers. → 158419 REMOVING AND INSTALLING CAMSHAFT CONTROLLER
