Installing Cylinder Head

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

If cold or excessively low-tempered components are sealed to each other by applying sealant, leaks can occur because of condensed water forming or components distorting. Components must be uniformly at least → Temperature: 17°C .

Install cylinder head.
Information
- It is best to use only a spatula and acetone to clean the sealing faces. Ensure good ventilation because of the acetone!
- Use a cleaning cloth to wipe the sealing faces clean and remove any grease .
- Replace the cylinder-head gasket .
- Replace the cylinder-head screws with new ones .
1. 1.1. Thoroughly clean all sealing faces before assembly.
2. 1.2. Cylinder head gasket Must Always Be Replaced .
3. 1.3. Always observe tightening sequence (1-20) for cylinder-head screws -1 to 20- and tighten to the specified torque.
  1. 1.3.1. Tighten cylinder-head screws to an initial Tightening Torque of 15 Nm (11 ft. lb.).
  2. 1.3.2. Tighten cylinder-head screws to 30 Nm (22 ft. lb.).
  3. 1.3.3. Then tighten all cylinder-head screws a Second Time to 30 Nm (22 ft. lb.).
  4. 1.3.4. And finally, tighten the cylinder-head screws to a torque angle of 180°.

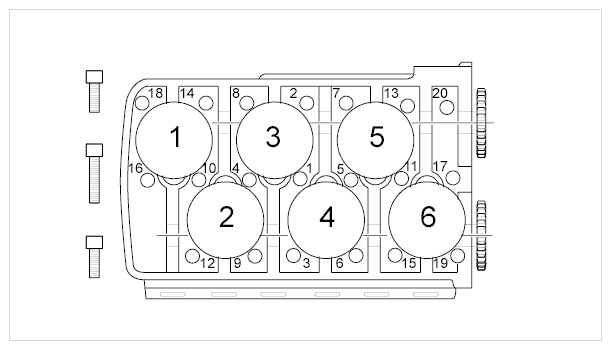

    Fig 1: Identifying Cylinder Head Tightening Sequence
    Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1-6 - Pistons of cylinders 1-6

  1-20 - Tightening sequence for cylinder-head screws → Initial tightening: 15 Nm (11 ft. lb.) → Tightening Torque: 30 Nm (22 ft. lb.) → Torque angle: 180°

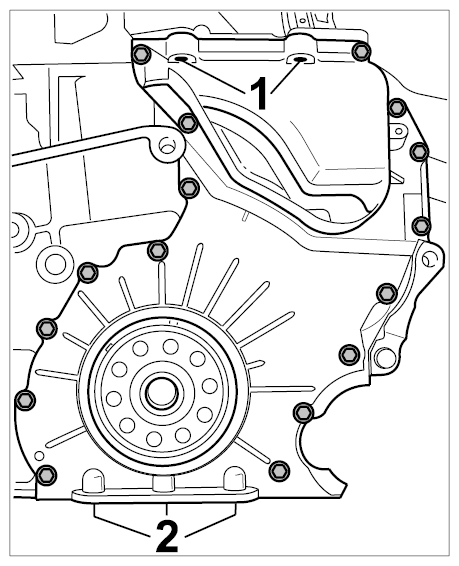

Secure the timing case to the cylinder head. -1- Fit both M8 screws → Tightening Torque: 23 Nm (17 ft. lb.) .

Fig 2: Identifying Lower Timing-Case Cover Screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
