Special Tools

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

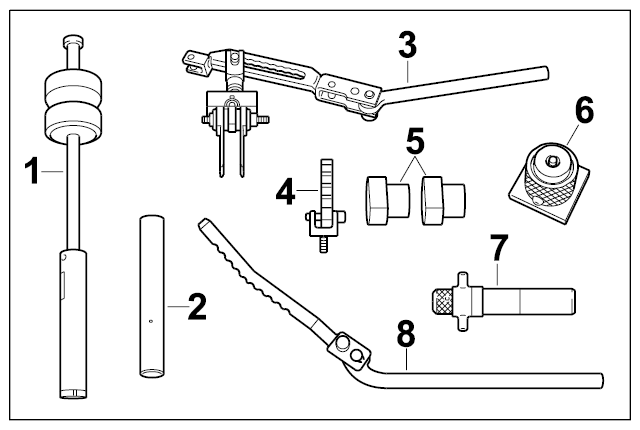

Fig 1: Identifying Valve Special Tools
G09932456Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Valve Stem Seal Puller 3364  → Only Used To Remove Valve Stem Seals.
  2. Assembly Driver 9606/1  → Only Used To Remove Valve Stem Seals.
  3. Universal Assembly Bar With Universal Assembly Driver Tool For Fitting/Removing Valve Keys Nr. 54 Pos. 1
  4. Hooking Piece (Fitting Hook) With Holder (Several Possible)
  5. Plastic Guide For Inlet And Outlet Valve 31mm Fastening Screw Nr. 54 Pos. 1A  and 28mm Fastening Screw Nr. 54 Pos. 1B
  6. Assembly Fixture For Valve Keys
  7. Assembly Cartridge For Valve Keys
  8. Assembly Bar (Hook) With Adjustable Lever
