Removing Hydraulic Valve For Valve Lift Switchover

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect electric plug connection -2-  .
  2. Unscrew fastening screws -4-  .
  3. Pull hydraulic valve -3-  out of the cylinder head.
    1. 3.1. Make sure that the sealing ring is also removed.

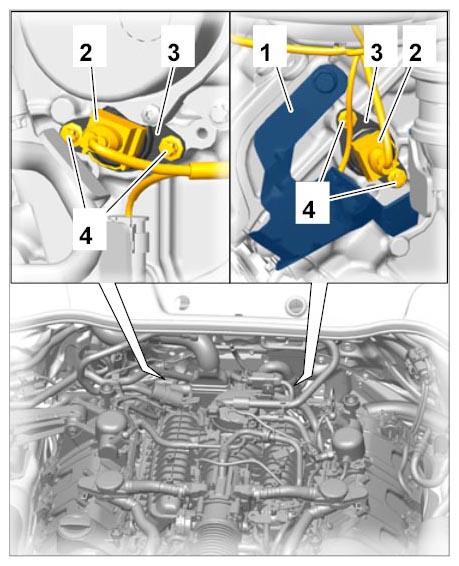

      Fig 1: Identifying Valve Lift Switchover Hydraulic Valves
      G09932437Courtesy of PORSCHE CARS NORTH AMERICA, INC.
