Installing Hydraulic Valve For Valve Lift Switchover

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install hydraulic valve -3-  with new sealing ring at the correct position.

    Sealing ring must not slip out of place.

  2. Fit and tighten fastening screws -4-  .
  3. Connect electric plug connection -2-  .

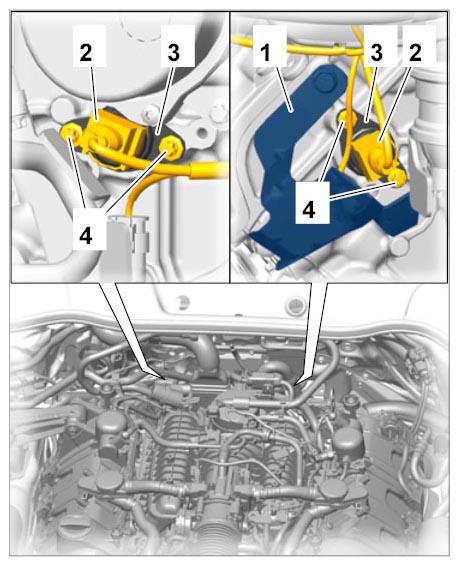

    Fig 1: Identifying Valve Lift Switchover Hydraulic Valves
    G09932438Courtesy of PORSCHE CARS NORTH AMERICA, INC.
