Removing Solenoid/Hydraulic Valve For Camshaft Adjuster

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Unscrew fastening screws for hydraulic valve -4-  .
  2. Carefully pull the hydraulic valve -3-  up and out. To do this, use Relay Puller 9235  . Hold hydraulic valve only at the metal insert.

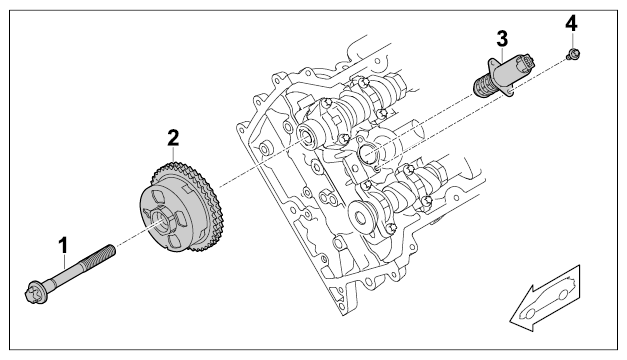

    Fig 1: Identifying Hydraulic Valve And Camshaft Adjuster
    G09932424Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    1. Screw, M12 Tighten Fully After Setting Timing  .; Screw must be replaced.
    2. Camshaft adjuster with integrated hexagon for countering
    3. Hydraulic valve for camshaft control
    4. Screw, M5 x 12
  3. Inspect strainer of hydraulic valve and clean with solvent naphtha if necessary. Replace hydraulic valve if heavily soiled.
