Installing Solenoid/Hydraulic Valve For Camshaft Adjuster

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

The tightening specifications for the basic engine are stored centrally (→ 1001IN TIGHTENING TORQUES, TIGHTENING SEQUENCES, ASSEMBLY OVERVIEWS ).

Tightening Torques and assembly instructions for other assemblies (e.g. chassis, electrics, transmission or body) or for peripheral engine equipment can be found in the corresponding documents.

Replace sealing ring on hydraulic valve. Do not insert sealing ring twisted when fitting it.
Coat sealing ring lightly with engine oil and insert the hydraulic valve into the cylinder head. Any installation position is possible.
Fit and tighten fastening screws.

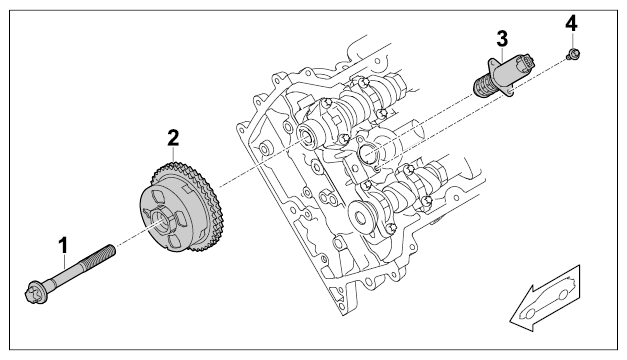

Fig 1: Identifying Hydraulic Valve And Camshaft Adjuster
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. Screw, M12 Tighten fully after setting timing .; Screw must be replaced.
2. Camshaft adjuster with integrated hexagon for countering
3. Hydraulic valve for camshaft control
4. Screw, M5 x 12
