Installing Solenoid/Hydraulic Valve For Camshaft Controllers

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Incorrect handling of sealing rings and covers

Leaks
Risk of damage to components

→ Use clean tools without burrs.

→ Make sure not to leave any scores or scratches when cleaning.

CAUTION: Risk of damage to solenoid valves!

Sealing ring can be damaged.
Incorrect Tightening Torque.

→ Press in solenoid valve firmly with your hand.

Install solenoid valves.
1. 1.1. Coat sealing ring with clean engine oil.
2. 1.2. Carefully position solenoid valves vertically with respect to the valve axis and press them as far as they will go into the housing with your hand.
3. 1.3. Tighten fastening screws arrows to → Tightening Torque: 4 Nm (3 ft. lb.) .

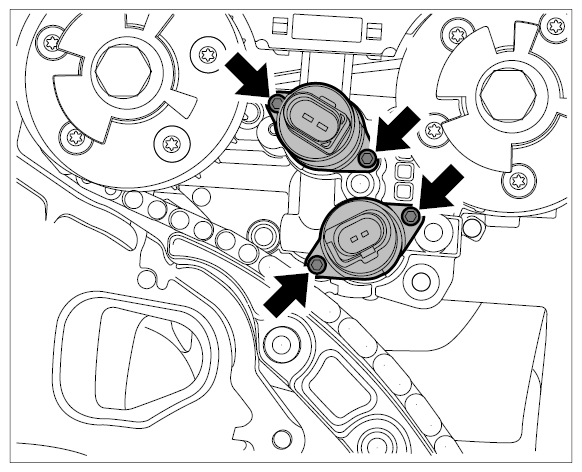

  Fig 1: Locating Camshaft Controller Hydraulic Valves
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
