Removing Timing Chains

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Incorrect handling of crankshafts

Risk of damage to the timing system

→ Never turn the crankshaft against the rolling direction or when the chain tensioner is removed.

→ Proceed carefully with your work.

→ Only turn the engine at the crankshaft.

→ Observe general warning notes and working regulations.

Loosen the timing chain.
1. 1.1. Unscrew the chain tensioner -9- . → 153519 REMOVING AND INSTALLING TIMING CHAINS ON V6 DFI ENGINES
2. 1.2. Unscrew the bearing pin -11- .
3. 1.3. Pull the tensioning rail -8- for the chain tensioner down and out.
4. 1.4. Remove guide rail -23- by unscrewing the fastening screws -20 and 21- .
5. 1.5. Remove timing chain from the camshaft controllers -4 and 25- .

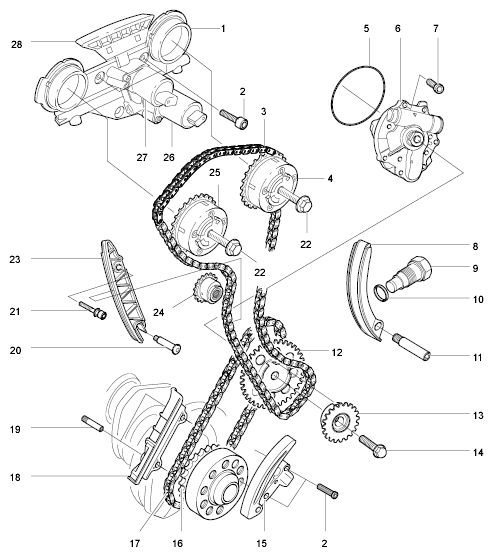

Fig 1: Identifying Timing Chains Components
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove camshaft controller.
Information

Fix camshaft in place
- To loosen the fastening screws on the camshaft controller, counter the relevant camshaft with an open-ended wrench (a/f 27) .
- To prevent damage, remove the camshaft guide .
1. 2.1. Remove outlet camshaft controller -4- by unscrewing the fastening screw -22- . Counter the camshaft at the hexagon → Camshaft hexagon with an open-ended wrench when doing this.
  Information

  Fix camshaft in place
  - To loosen the fastening screws on the camshaft controller, counter the relevant camshaft with an open-ended wrench (a/f 27) .
  - To prevent damage, remove the camshaft guide .
2. 2.2. Remove intake camshaft controller -25- by unscrewing the fastening screw -22- . Counter the camshaft at the hexagon with an open-ended wrench when doing this.

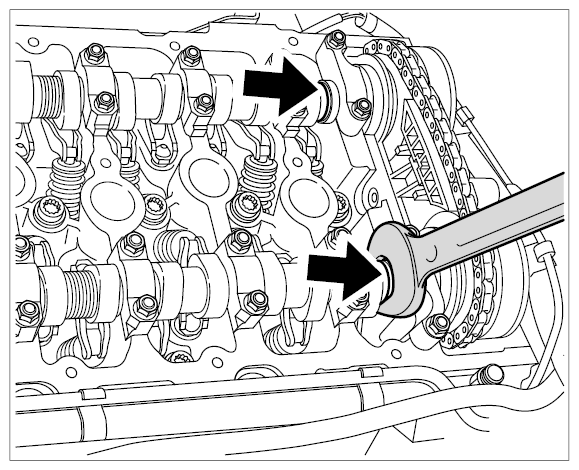

  Fig 2: Identifying Camshaft Hexagon
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Information
- Always check all components, such as timing chains, sprockets, locking pins and chamfers for wear or damage. Always replace faulty components .
- Always replace all fastening screws for the sprockets .
- Before removing the timing chains, mark the running direction with a colored pen .
- Maintain the same timing chain running direction during re-installation .
- Never use a prick punch or file for marking .
Remove timing chain -3- .
1. 3.1. Remove oil pump sprocket -13- by unscrewing the fastening screw -14- .

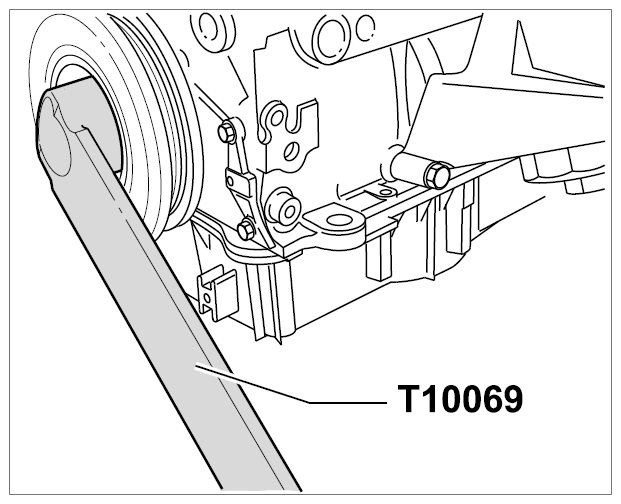

  Block the crankshaft using Counter-Hold Tool T10069 .

  Fig 3: Identifying Counter-Hold Tool
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Relieve the drive chain -17- .
1. 4.1. Remove chain tensioner and tensioning rail -15- . To do this, unscrew both fastening screws -2- .
Remove the drive chain -17- .
1. 5.1. Remove the sprocket -12- from the oil pump shaft.
