Preliminary Work

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove all engine compartment covers. → 700219 REMOVING AND INSTALLING FRONT TRIM (ENGINE COMPARTMENT)
  2. Remove the engine. → 100119 REMOVING AND INSTALLING ENGINE
  3. Remove transmission. → 373519 REMOVING AND INSTALLING AUTOMATIC TRANSMISSION
  4. Remove drive plate for torque converter. → 136319 REMOVING AND INSTALLING DRIVE PLATE FOR TORQUE CONVERTER
  5. Remove intake-air distributor. → 244619 REMOVING AND INSTALLING INTAKE-AIR DISTRIBUTOR
  6. Remove cylinder head cover. → WM 158219 REMOVING AND INSTALLING CYLINDER HEAD COVER (VALVE COVER)
  7. Remove upper and lower timing-case cover. → WM 153319 REMOVING AND INSTALLING CHAIN HOUSING COVER (CAYENNE)
  8. Position crankshaft on cylinder 1 to the compression TDC. → TDC marking → WM 150502 CHECKING THE TIMING ON V6 DFI ENGINES

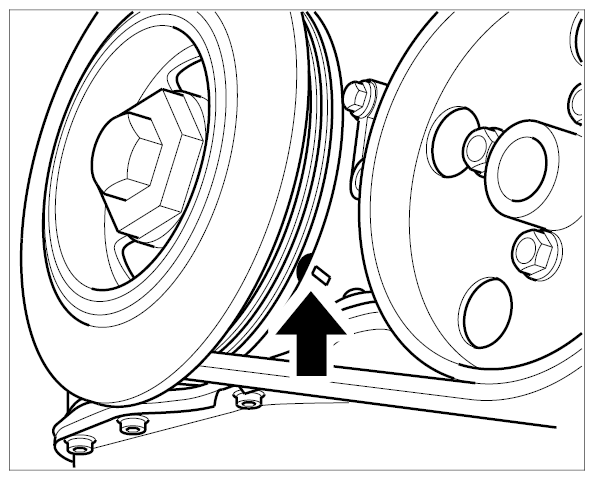

    Fig 1: Locating Crankshaft TDC Marking
    G09932406Courtesy of PORSCHE CARS NORTH AMERICA, INC.
