Removing Timing Chain

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

The rolling direction of the timing chain must always be the same .
If the timing chain is to be reused, the rolling direction of the timing chain must be marked before it is removed .

Information

If the timing chain has to be removed or replaced, check the guide and tensioning rails as well as the chain pinions for wear and scoring and replace them if necessary.

Loosen the fastening screws on the camshaft timing gears and camshaft controllers (by one or two turns). To do this, counter at the hexagon on the camshaft controller and camshaft timing gear using a ring wrench. → Camshaft timing gears and camshaft controllers

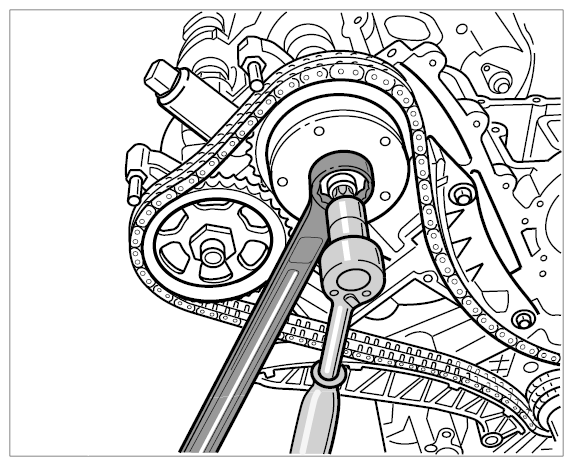

Fig 1: Loosening Camshaft Timing Gears And Camshaft Controllers
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove timing chain from all sprockets by pulling it forwards.
