Removing Drive Chain For Auxiliary Drives

→ Mark running direction of timing chains.

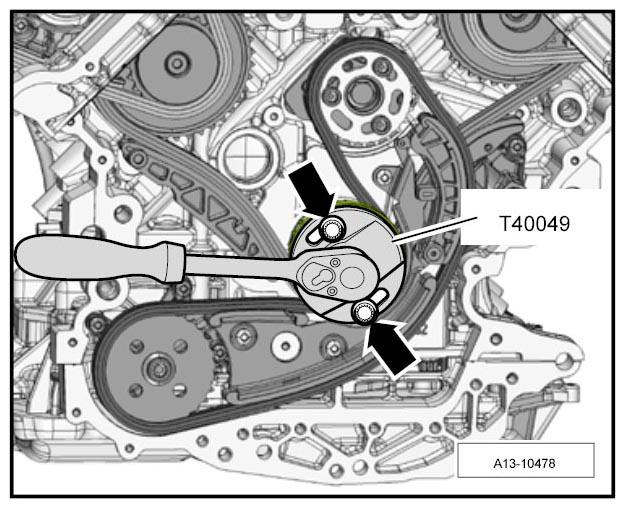

1. Fit Special Wrench T40049  at the rear of the crankshaft with two screws -arrows-  .

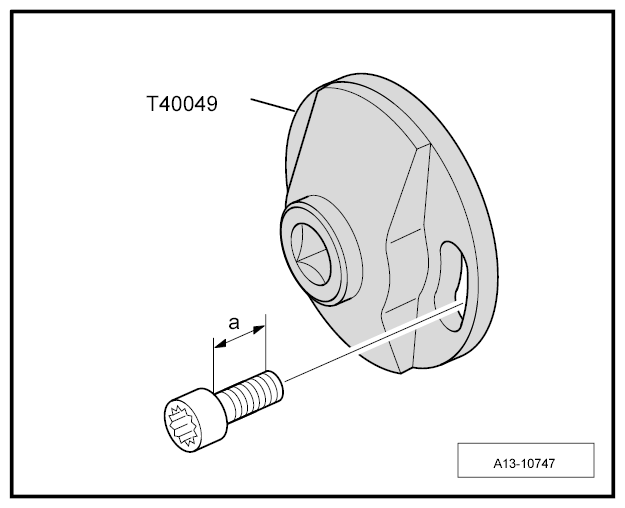

   1. 1.1. When screwing on the Special Wrench -T40049-  , only use screws with a thread length -a-  of max. 22 mm  .
      Fig 1: Locating Special Wrench (T40049)

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
      Fig 2: Identifying Special Wrench Screws (T40049)

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

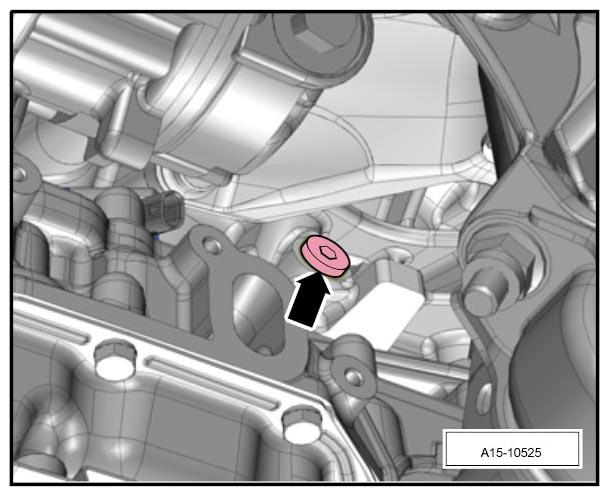

2. Unscrew screw plug -arrow-  for the "TDC" mark on the crankshaft from the cylinder block.

   Turn crankshaft to "TDC" in direction of rotation of the engine.

   Fig 3: Locating TDC Mark Screw Plug

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. Using Adapter -T40058-  and an angled ring wrench, turn the crankshaft to "TDC" in direction of rotation of the engine.

   Only Turn The Crankshaft In Direction Of Rotation Of The Engine -Arrow-!

   Fig 4: Rotating Crankshaft

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
4. The notch -A-  must be aligned with the joint -arrow-  .
   Fig 5: Identifying Crankshaft Notch And Joint

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
5. Locking Pin T40069  must be screwed into the bore hole and tightened to → Tightening Torque: 25 Nm (19 ft. lb.)  . Turn the crankshaft -1-  back and forth slightly if necessary in order to center the locking pin fully.
   Fig 6: Identifying Pin (T40069)

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
6. Remove chain and chain tensioner.

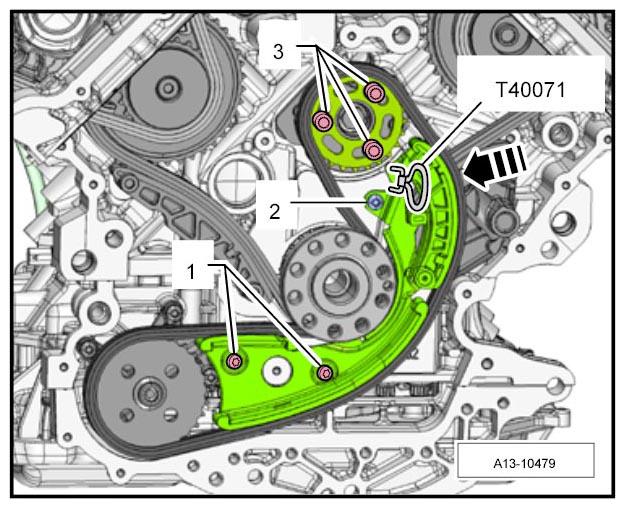

   1. 6.1. Press the guide rail for the chain tensioner in -direction of arrow-  and lock the chain tensioner in place with the Locking Pin -T40071-  .
   2. 6.2. Unscrew screws -3-  and remove the balance shaft sprocket.
   3. 6.3. Unscrew screws -1-  and -2-  and remove the chain tensioner and chain.
      Fig 7: Pressing Guide Rail For Chain Tensioner And Locking In Place With Locking Pin

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
