Securing Timing-Case Cover

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Secure aligned timing-case cover.
1. 1.1. Tighten screws to the specified Tightening Torque in the sequence -1 - 30- .

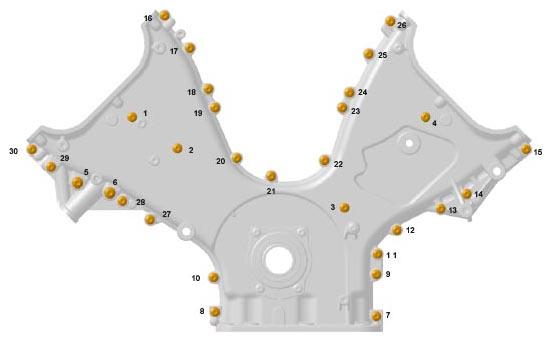

  Fig 1: Timing-Case Cover Tightening Sequence
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

  1-30 - Tightening sequence

  1-4 - Screw, M6 x 55

  5 + 6 - Screw, M8 x 55

  7-12 - Screw, M6 x 30

  13 + 14 - Screw, M6 x 55

  15-28 - Screw, M6 x 30

  29 - Screw, M6 x 55

  30 - Screw, M6 x 30

  -

  1-4 + 7-30 - Screw M6 → Initial tightening: 4 Nm (3 ft. lb.) → Final tightening: +90°

  5 + 6 - Screw M8 → Initial tightening: 10 Nm (7.5 ft. lb.) → Final tightening: +90°
Further installation is performed in reverse order.
