Preliminary Work

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove engine from transmission. → 100127 REMOVING ENGINE FROM TRANSMISSION AND MOUNTING ENGINE ON TRANSMISSION
  2. Secure engine on assembly support. → 1001IN SECURING ENGINE ON ASSEMBLY SUPPORT (MOUNTING BRACKET)
  3. Drain engine oil
  4. Remove drive belt. → 137819 REMOVING AND INSTALLING DRIVE BELT .
  5. Remove coolant hoses in front of the timing-case cover.

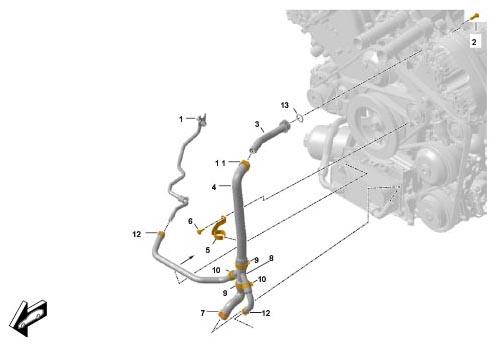

    Fig 1: Identifying Coolant Return Hoses
    G09932366Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  6. Remove both valve covers. → 158219 REMOVING AND INSTALLING CYLINDER HEAD COVER
  7. Remove pulley. → 137619 REMOVING AND REINSTALLING PULLEY (VIBRATION BALANCER)
  8. Remove joint flange from crankshaft sealing ring for pulley. → 137419 REMOVING AND INSTALLING CRANKSHAFT SEALING RING FOR PULLEY/VIBRATION BALANCER
  9. Remove both turbochargers. → 213019 REMOVING AND INSTALLING TURBOCHARGER
  10. Remove oil pan. → 175019 REMOVING AND INSTALLING OIL PAN
  11. Remove oil guide housing. → 175019 REMOVING AND REINSTALLING OIL GUIDE HOUSING
  12. Remove chain tensioner. → 153519 REMOVING AND INSTALLING TIMING CHAINS ON V6 DFI ENGINES
