Aligning Timing-Case Cover Using A Dial Gauge

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

The timing-case cover must not project over the crankcase. The maximum offset is → Length: 0.1 mm .

Insert the dial gauge into the universal dial gauge bracket and position it so that the dial gauge has a preload of about 1 mm. → see Fig 1

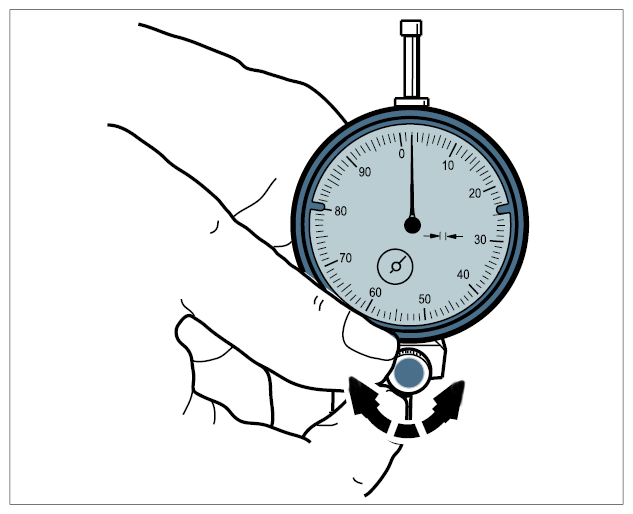

Fig 1: Adjusting Preload
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Set dial gauge scale to 0. To do this, place the dial gauge bracket on a completely flat surface (e.g. crankcase flange) and turn the dial gauge scale until the pointer is at 0. → see Fig 2

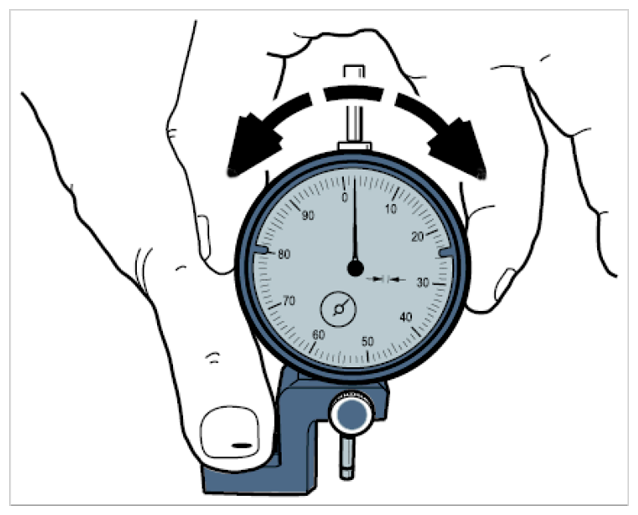

Fig 2: Adjusting Dial Gauge Scale To Zero
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Measure offset. To do this, push with the bracket starting from the lower part of the crankcase towards the timing-case cover (the base of the dial gauge bracket is not located on the same component as the dial gauge probe) and measure the offset → see Fig 3. The timing-case cover must not be set back by more than 0.1 mm. It must not project out.

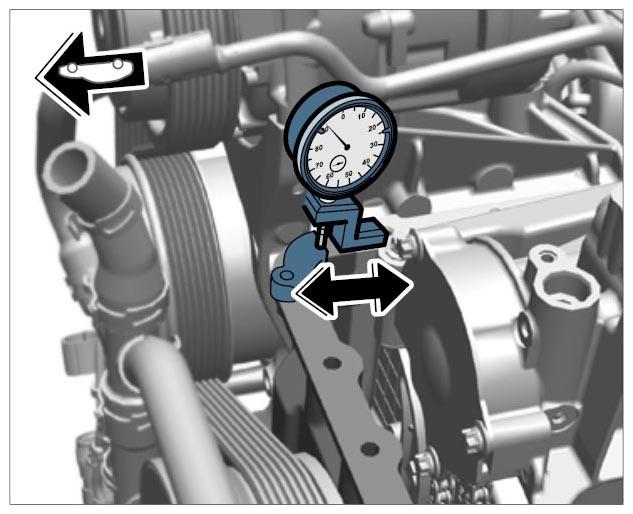

Fig 3: Measuring Timing-Case Cover Offset
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Align the timing-case covers by tapping lightly with a rubber hammer. → see Fig 4

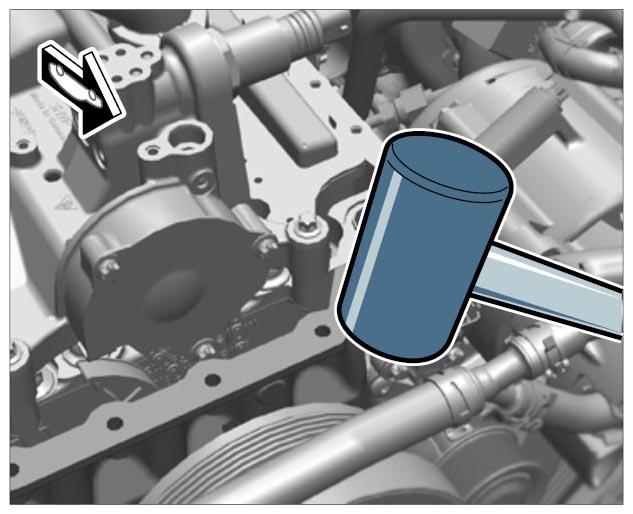

Fig 4: Aligning Timing-Case Cover
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Once you have aligned the timing-case cover, tighten two fastening screws on the left and right of the timing-case cover base hand-tight. Then check the position of the timing-case cover again using the dial gauge. → see Fig 5

Fig 5: Measuring Timing-Case Cover Offset
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
