Timing-Case Cover

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

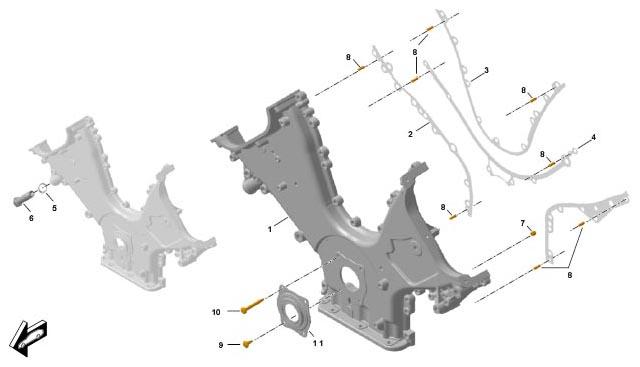

Fig 1: Identifying Timing-Case Cover
G09932367Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Timing-Case Cover
  2. Outer Seal, Right Replace
  3. Inner Seal Replace
  4. Seal, Rib Replace
  5. Sealing Ring Replace
  6. Chain Tensioner → Tightening Torque: 60 Nm (44 ft. lb.)
  7. Dowel Sleeve
  8. Straight Pin, M6 x 16
  9. Aluminum Screw, M6/replace → Initial Tightening: 4 Nm (3 ft. lb.) → Final Tightening: +90°
  10. Aluminum Screw, M6/replace → Initial Tightening: 4 Nm (3 ft. lb.) → Final Tightening: +90°
  11. Joint Flange
