Removing Chain Housing Cover: Notes

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Incorrect handling of crankshafts

Risk of damage to the timing system

→ Never turn the crankshaft against the rolling direction or when the chain tensioner is removed.

→ Proceed carefully with your work.

→ Only turn the engine at the crankshaft.

→ After working on the camshaft, re-set the valve timing.

→ Observe general warning notes and working regulations.

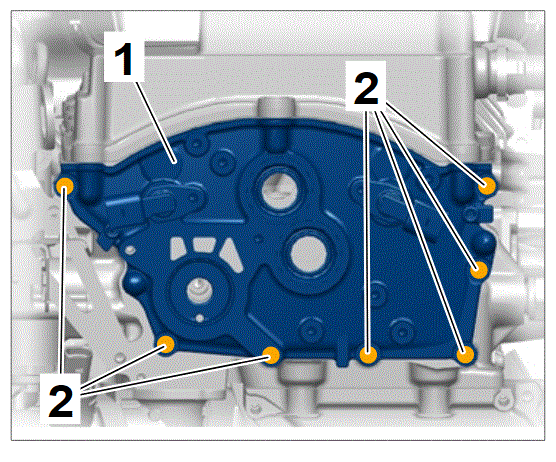

Remove upper chain housing cover -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1.1. Do not remove camshaft hall senders.
1.2. Unscrew and remove fastening screws -2- for the upper chain housing cover -1- .
1.3. Detach securely bonded chain housing cover -1- by tapping it carefully with a rubber hammer.
1.4. Clean sealing faces on engine block, chain housing cover and cylinder-head gasket.
2. Check sealing rings on the hydraulic valves in the chain housing cover.

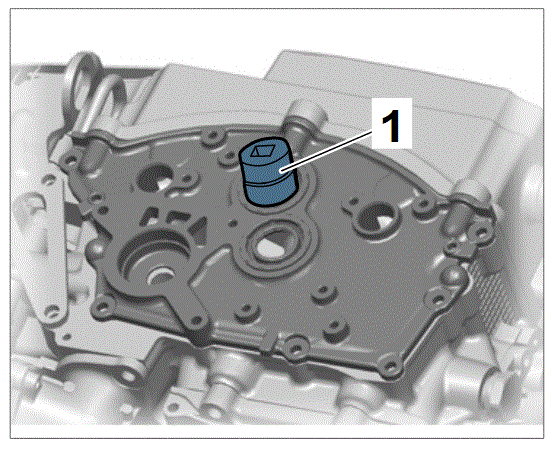

2.1. If the sealing rings are damaged, place the chain housing cover on a level surface and tap out the rings using a socket-wrench insert -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

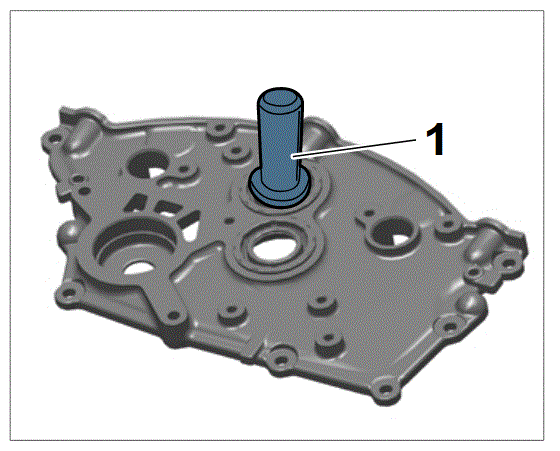

2.2. Fit new sealing rings using the pressure sleeve T10174 -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
