Preliminary Work for removing lower housing chain cover

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove engine. → Removing And Installing Engine
  2. Remove transmission → Removing And Installing Automatic Transmission
  3. Remove drive plate for torque converter. → Removing And Installing Drive Plate For Torque Converter

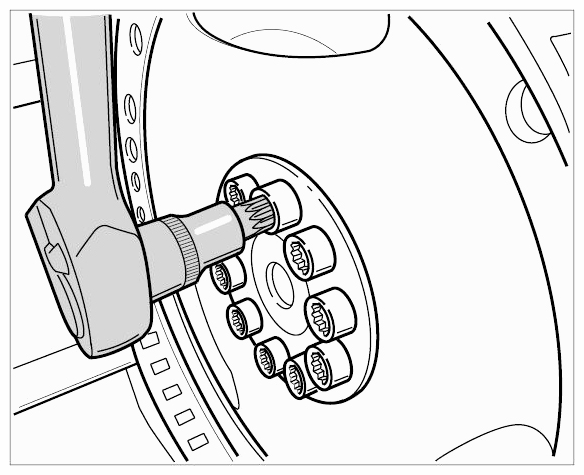

    Fig 1: Loosening Drive Plate Bolt
    G09409189Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  4. Remove oil pan. → Removing And Installing Oil Pan
