Chain housing Cover

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

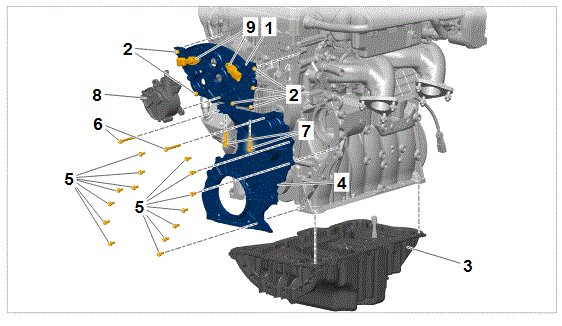

Fig 1: Exploded View Of Chain Housing Cover And Vacuum Pump
G00593750Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Upper chain housing cover
  2. Fastening screw, M6 x 20
  3. Oil pan
  4. Lower chain housing cover
  5. Fastening screw, M6 x 16
  6. Fastening screw, M6 x 58
  7. Fastening screw, M8 x 30
  8. Vacuum pump
  9. Hall sender
