Installing Camshaft Timing Gear

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

The tightening specifications for the basic engine are stored centrally (→ 1001IN TIGHTENING TORQUES, TIGHTENING SEQUENCES, ASSEMBLY OVERVIEWS ).

Tightening Torques and assembly instructions for other assemblies (e.g. chassis, electrics, transmission or body) or for peripheral engine equipment can be found in the corresponding documents.

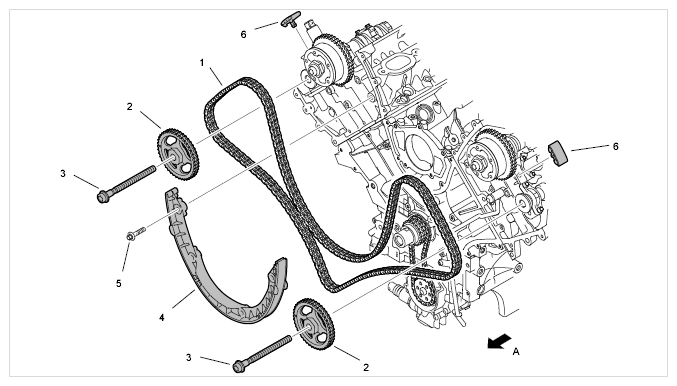

Fig 1: Identifying Timing Chain And Sprockets

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Double-Chain Camshaft Drive
Camshaft Sprocket
Screw, M12 Tighten Completely After Setting Timing .
Deflector Rail
Screw, M8 x 35
Camshaft-To-Camshaft Guide Pad

Direction Of Travel

Lift timing chain and place camshaft timing gear carefully on the camshaft. In order to have sufficient play in the timing chain, turn the loosened camshaft controller back and forth if necessary. Place timing chain on camshaft timing gear.
Fit screw for camshaft timing gear and screw it in loosely.
Screw in the four screws of the sprockets and camshaft controller as far as possible (it must still be possible to turn the sprockets and camshaft controller to adjust the timing).
Set the timing. → 150516 SETTING TIMING FOR CAMSHAFTS Do not tighten the sprockets and camshaft controllers to the final Tightening Torque until the timing has been set.
