Removing Camshafts

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

During removal, note the installation position and allocation of the camshafts and bearing covers on a sheet of paper in such a way that they cannot be mixed up .
Protect camshafts and bearing covers from dirt and place the components on a clean surface according to installation position .

Remove camshafts.
1. 1.1. Loosen screws -11- and -15- slowly and evenly, one after the other from the outside in.
2. 1.2. Remove mounting saddle -8- and bearing cover -10- .
3. 1.3. Remove camshafts and place them on a clean, soft surface.

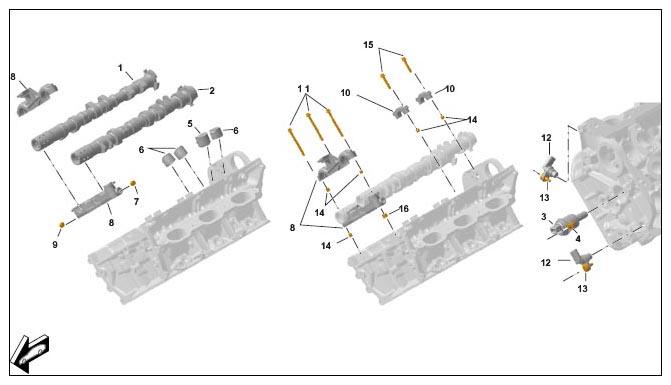

  Fig 1: Identifying Camshaft Components (Cylinders 1-3)
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
