Marking On Bearing Cover

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

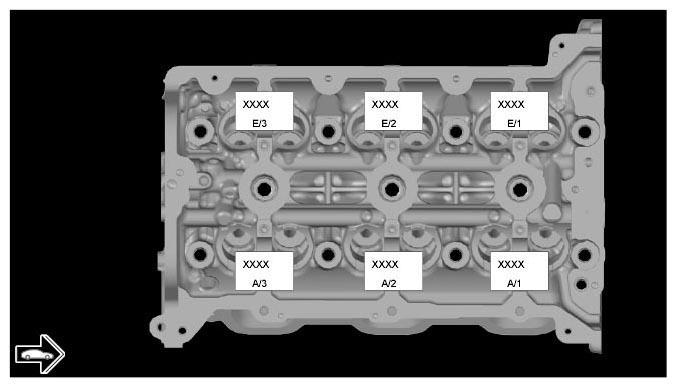

Fig 1: Identifying Camshaft Bearing Cover Markings (Cylinders 1 To 3)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

All markings can be read from the exhaust side/main diagram applies symmetrically for both cylinder heads

Matching number for cylinder head/intake camshaft housing, cylinder 1 (E1)
Matching number for cylinder head/intake camshaft housing, cylinder 2 (E2)
Matching number for cylinder head/intake camshaft housing, cylinder 3 (E3)
Matching number for cylinder head/outlet camshaft housing, cylinder 1 (A1)
Matching number for cylinder head/outlet camshaft housing, cylinder 2 (A2)
Matching number for cylinder head/outlet camshaft housing, cylinder 3 (A3)

arrow - Direction of travel
