Right Timing Chain

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

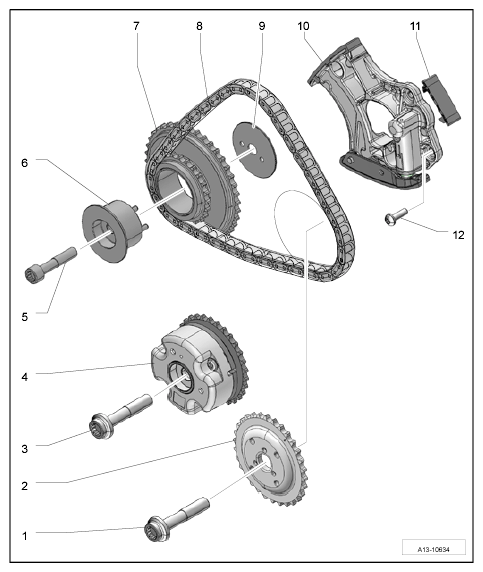

Fig 1: Identifying Right Timing Chain Components
G09932316Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Screw Replace → Initial Tightening: 80 Nm (59 ft. lb.) → Final Tightening: +90°
  2. Camshaft Sprocket, For Outlet Camshaft
  3. Screw Replace → Initial Tightening: 80 Nm (59 ft. lb.) → Final Tightening: +90°
  4. Camshaft Controller, For Intake Camshaft
    • "in-take" marking
  5. Screw Replace → Initial Tightening: 30 Nm (22 ft. lb.) → Final Tightening: +90°
  6. Bearing Pin, For Drive Sprocket For Right Timing Chain
    • Asymmetrical version
  7. Drive Sprocket, For Right Timing Chain
  8. Right Timing Chain
    • For re-installation, mark rolling direction with paint/color marker
    • Remove from camshafts
  9. Thrust Washer, For Drive Sprocket For Right Timing Chain
    • Asymmetrical version
  10. Chain Tensioner, For Right Timing Chain
  11. Slide
  12. Screw → Tightening Torque: 9 Nm (6.5 ft. lb.)
