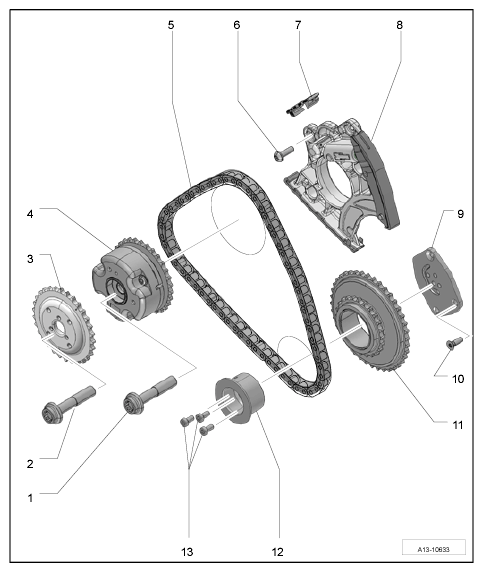

Left Timing Chain
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
- Screw Replace → Initial Tightening: 80 Nm (59 ft. lb.) → Final Tightening: +90°
- Screw Replace → Initial Tightening: 80 Nm (59 ft. lb.) → Final Tightening: +90°
- Camshaft Sprocket, For Outlet Camshaft
- Camshaft Controller, For Intake Camshaft
- "in-take" marking
- Left Timing Chain
- For re-installation, mark rolling direction with paint/color marker
- Remove from camshafts
- Screw → Tightening Torque: 9 Nm (6.5 ft. lb.)
- Slide
- Chain Tensioner, For Left Timing Chain
- Bearing Plate, For Drive Sprocket
- Screw Replace → Initial Tightening: 8 Nm (6 ft. lb.) → Final Tightening: +45°
- Drive Sprocket, For Left Timing Chain
- Bearing Pin, For Drive Sprocket For Left Timing Chain
- Screws Replace → Initial Tightening: 5 Nm (3.5 ft. lb.) → Final Tightening: +60 Nm (+44 ft. lb.)
