Setting The Timing

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Set the timing

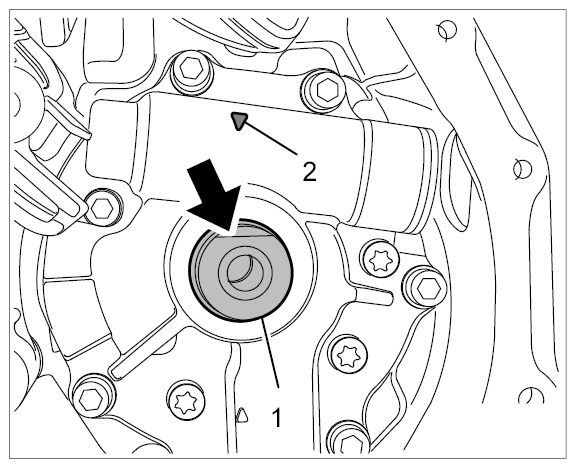

1. 1.1. Position the oil pump shaft -1- with the flat side up so that it is horizontal to the marking -2- .

  Fig 1: Locating Oil Pump Shaft
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Install sprocket for oil pump
Install drive chain. → 153519 REMOVING AND INSTALLING TIMING CHAIN (AUXILIARY DRIVE MECHANISM)
Install drive wheel for timing chain.
Install timing chain. → 153519 REMOVING AND INSTALLING TIMING CHAIN (AUXILIARY DRIVE MECHANISM)
After you have fitted the timing chain, turn the crankshaft twice and check the timing. → 150502 CHECKING THE TIMING ON V6 DFI ENGINES
