WM 150516 Checking And Setting Timing For Camshafts (Cayenne Tip & Cayenne Tip "Platinum Edition"): Information

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

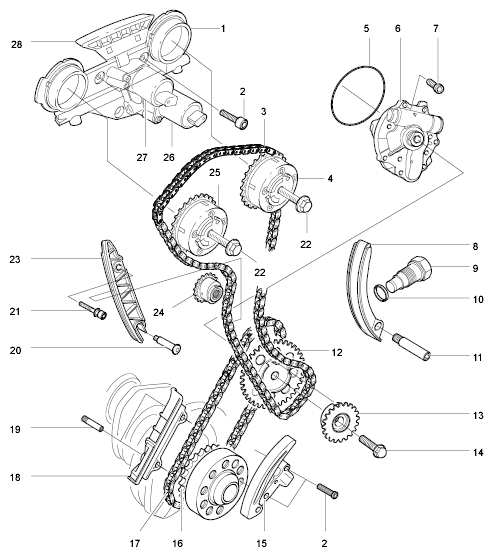

Fig 1: Identifying Timing Chains Components
G09932354Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Timing Chain Housing
  2. Fastening Screw
  3. Timing Chain
  4. Outlet Camshaft Controller
  5. Sealing Ring
  6. Oil Pump
  7. Fastening Screw
  8. Tensioning Rail
  9. Chain Tensioner For Timing Chain
  10. Sealing Ring
  11. Bearing Pin
  12. Sprocket For Drive Chain
  13. Drive Wheel For Timing Chain
  14. Fastening Screw
  15. Chain Tensioner For Drive Chain
  16. Drive Wheel For Drive Chain
  17. Drive Chain
  18. Guide Rail For Drive Chain
  19. Bolt
  20. Fastening Screw For Timing-Chain Guide Rail
  21. Fastening Screw For Timing-Chain Guide Rail
  22. Fastening Screws For Camshaft Controllers
  23. Guide Rail For Timing Chain
  24. Drive Gear Wheel For High-Pressure Pump
  25. Intake Camshaft Controller
  26. Valve For Outlet Camshaft Controller
  27. Valve for intake camshaft controller
  28. Guide Rail
