Checking The Timing

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

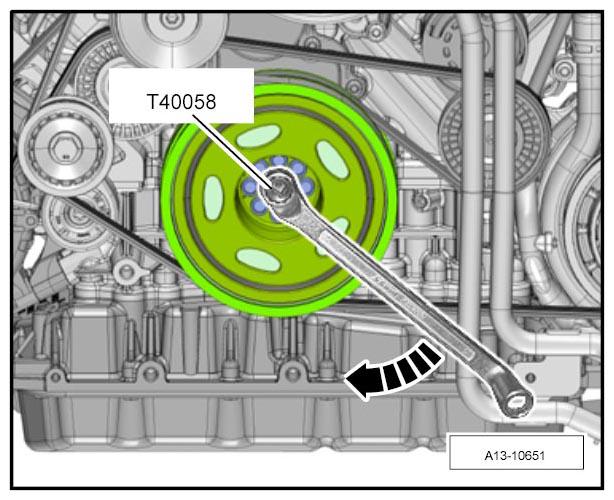

Using Adapter T40058 and an angled ring wrench, turn the crankshaft to "TDC" in direction of rotation of the engine.
Only Turn The Crankshaft In Direction Of Rotation Of The Engine -Arrow-!

Fig 1: Rotating Crankshaft
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

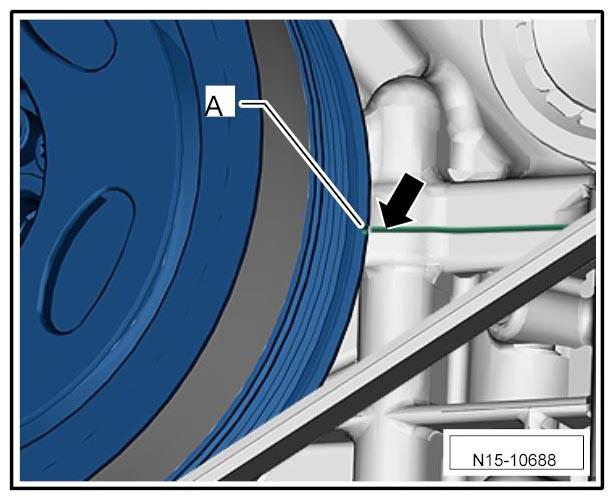

The notch -A- must be aligned with the joint -arrow- .

Fig 2: Locating Crankshaft Notch And Joint
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

If you inadvertently turn the crankshaft beyond "TDC", turn it back approx. 30° and set it to "TDC" again.

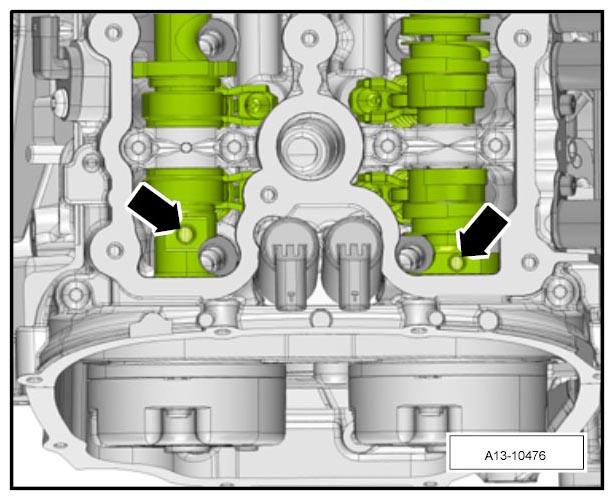

The threaded bores -arrows- in the camshafts must be facing upwards.

Fig 3: Locating Camshafts Threaded Bores
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

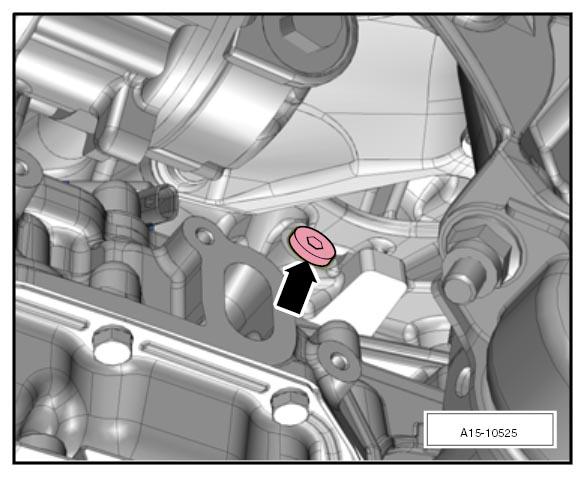

Unscrew screw plug -arrow- for the "TDC" mark on the crankshaft from the cylinder block.

Fig 4: Locating TDC Mark Screw Plug
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

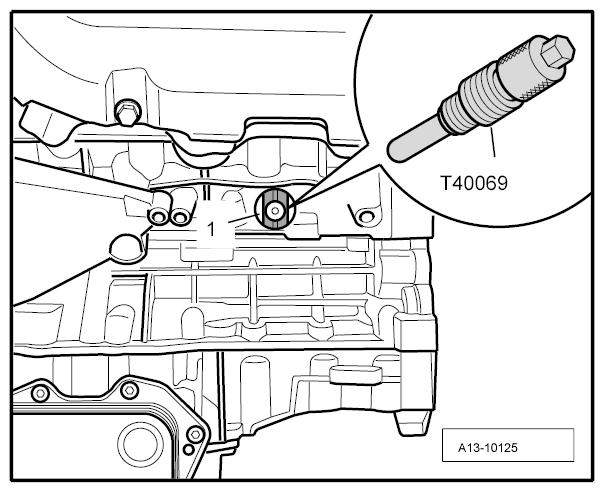

Locking Pin T40069 must be screwed into the bore and tightened to → Tightening Torque: 25 Nm (19 ft. lb.) .
Locking pin T40069 must engage in the securing bore on the crankshaft -1- .

Fig 5: Identifying Pin (T40069)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

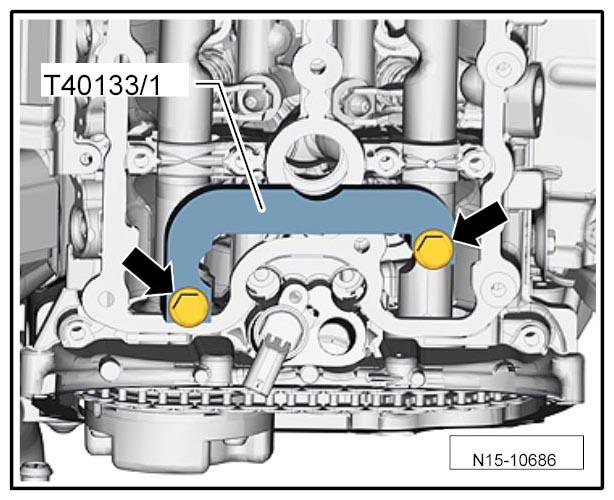

You must be able to secure the camshaft for cylinder bank 1 in "TDC" position using Camshaft Clamps T40133 .

Fig 6: Locating Camshaft Clamp (T40133/1)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

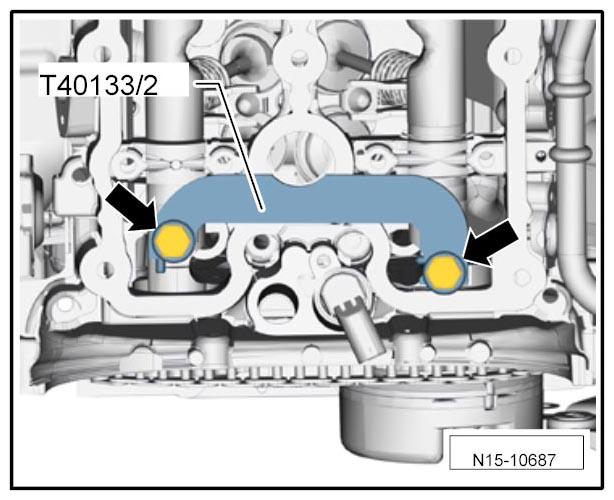

You must be able to secure the camshaft for cylinder bank 2 in "TDC" position using Camshaft Clamps T40133 .

Fig 7: Locating Camshaft Clamp (T40133/2)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
If the camshafts cannot be secured, the valve timing must be set.
