Removing Torque-Converter Sealing Ring

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

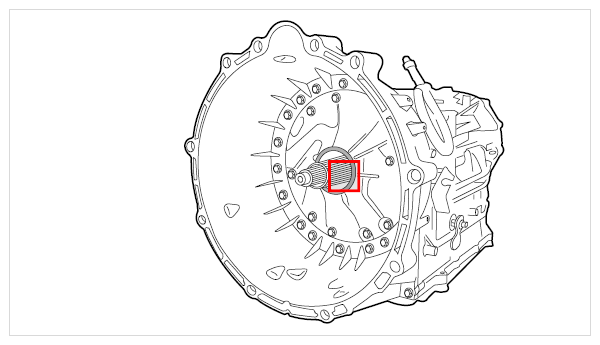

Fig 1: Overview Of Torque Converter

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

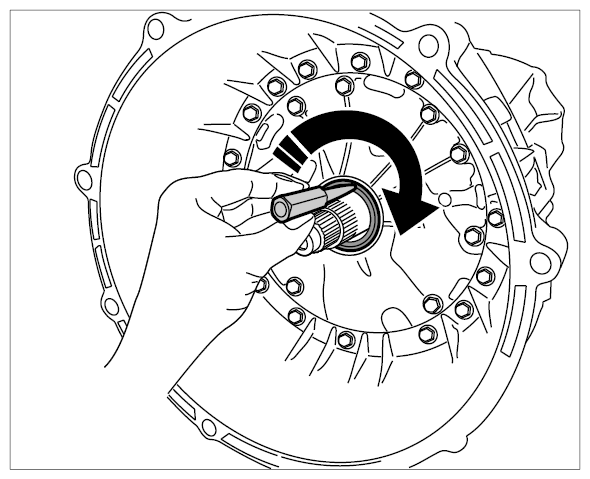

Using the bolt adapter from the slide hammer kit 168 , screw conical screw into the sealing ring -direction of arrow- .

Fig 2: Removing Sealing Ring
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
WARNING:
Hot fluid
- Danger of scalding
→ Let the fluid cool down.

→ Wear personal protective gear.

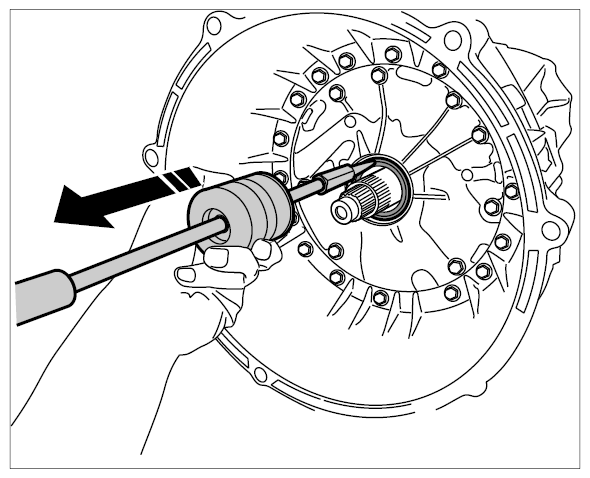

Screw on slide hammer from slide hammer kit 168 and remove sealing ring.

Fig 3: Removing Torque-Converter Sealing Ring
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
