Installing Torque-Converter Sealing Ring

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

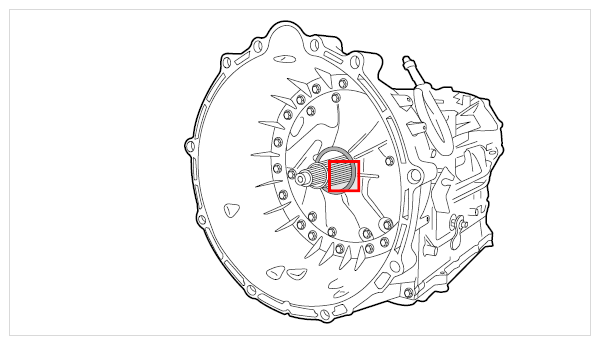

Fig 1: Overview Of Torque Converter
G09934321Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Fit a new sealing ring on special tool thrust piece T40134  .
  2. Drive in sealing ring with special tool -arrow-  until the assembly sleeve is flush with the transmission housing.

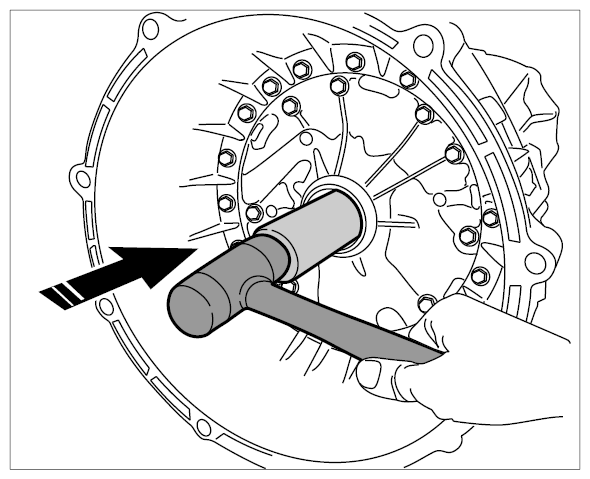

    Fig 2: Installing Sealing Ring
    G09934322Courtesy of PORSCHE CARS NORTH AMERICA, INC.
