Removing Electrohydraulic Control Unit

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Carefully release and pull off connectors -arrows-  .

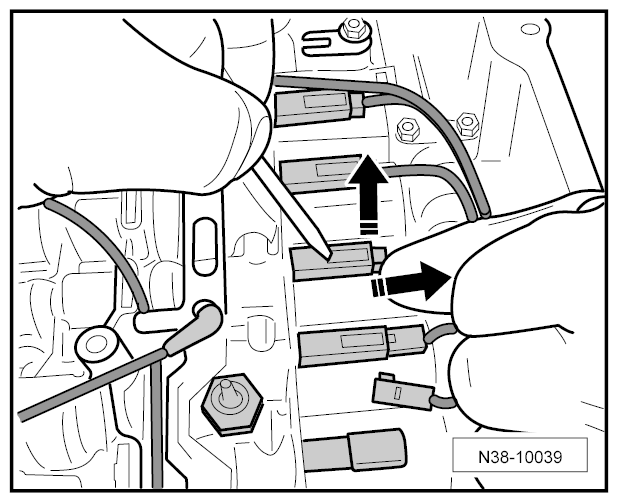

    Fig 1: Removing Connectors For Electrohydraulic Control Unit
    G09934628Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Remove screws on the electrohydraulic control unit -arrows-  in diagonally opposite sequence.

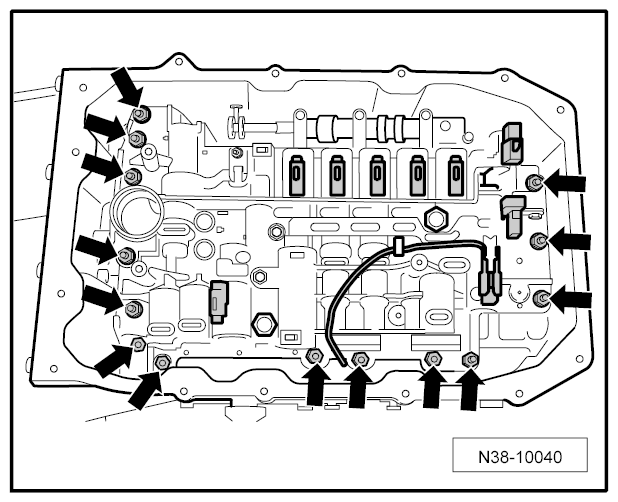

    Fig 2: Locating Screws On Electrohydraulic Control Unit
    G09934629Courtesy of PORSCHE CARS NORTH AMERICA, INC.
