Removing ATF Thermostat

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Hot fluid

Danger of scalding

→ Let the fluid cool down.

→ Wear personal protective gear.

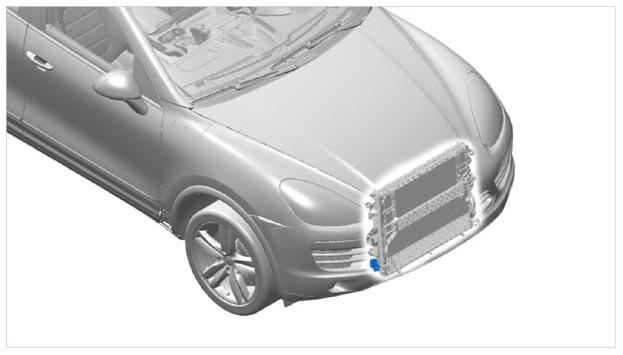

Fig 1: Identifying ATF Thermostat Location

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Place oil collecting container underneath the vehicle.

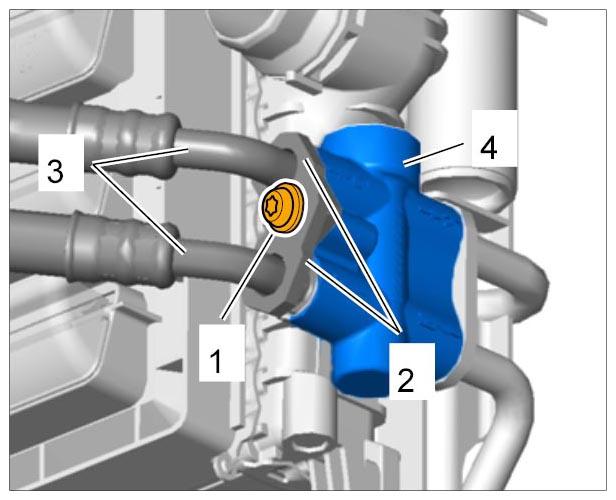

Loosen fastening screw -1- on holder -2- for ATF lines -3- for the transmission at the thermostat -4- .
Pull ATF lines -3- from transmission to thermostat out of the thermostat -4- .
Close off the lines with suitable stoppers.

Fig 2: Identifying ATF Lines From Thermostat To Transmission
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

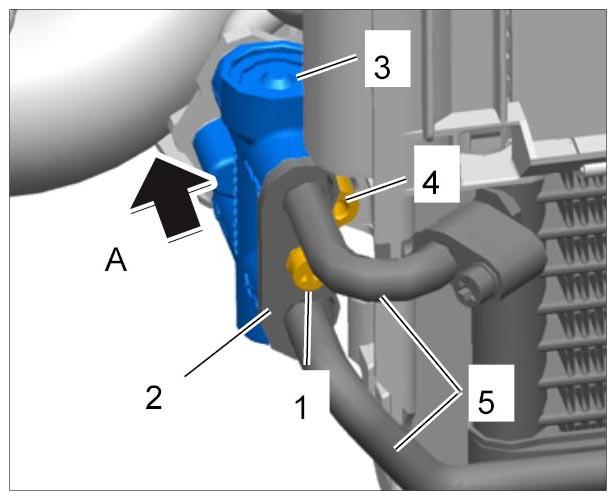

Loosen fastening screw -1- on holder -2- for ATF lines -5- at the thermostat -3- .
Loosen fastening screw -4- on the ATF thermostat -3- .
Pull the ATF thermostat -3- down off the ATF lines -5- for the cooler and towards the rear -A- . Close off the lines with suitable stoppers.

Fig 3: Removing Front Lines
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove ATF thermostat.
