Installing ATF Thermostat

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

The sealing rings at the ends of the ATF lines on the transmission and cooler sides must be replaced before installation .

Replace sealing rings on the disconnected ATF lines and smear with ATF.
Fit the ATF thermostat -1- onto the ATF lines -2- for the ATF cooler -A- .

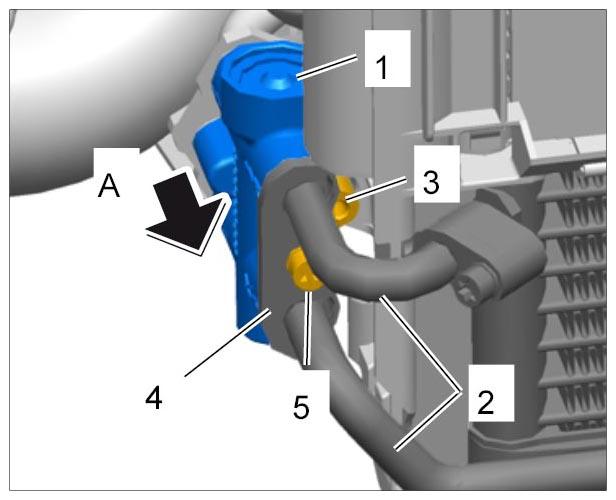

Fig 1: Installing ATF Thermostat
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Position ATF thermostat -1- and screw in fastening screw -3- .
Position holder for ATF lines -4- to the ATF cooler and screw in fastening screw -5- . → Tightening torque: 8 Nm (6 ftlb.)+/-0.8 Nm (+/-0.5 ftlb.)
Ensure that the lines are seated correctly.
Fit ATF lines -3- from the transmission into the thermostat -4- .

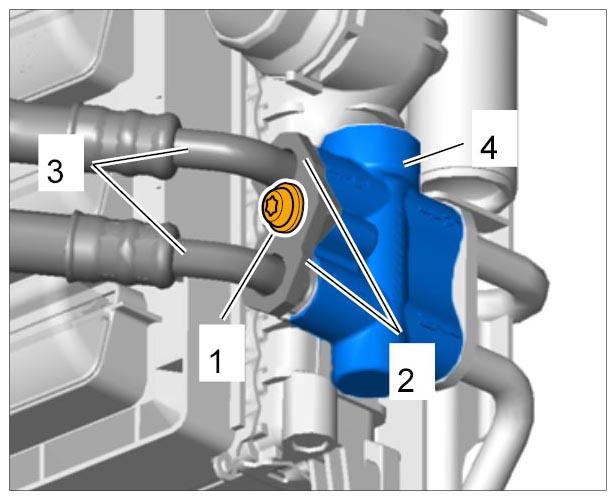

Fig 2: Identifying ATF Lines From Thermostat To Transmission
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Position holder -2- and screw in fastening screw -1- . → Tightening torque: 8 Nm (6 ftlb.)+/-0.8 Nm (+/- 0.5 ftlb.)
