Removing ATF cooler

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Identifying Installation Position Of ATF Cooler

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

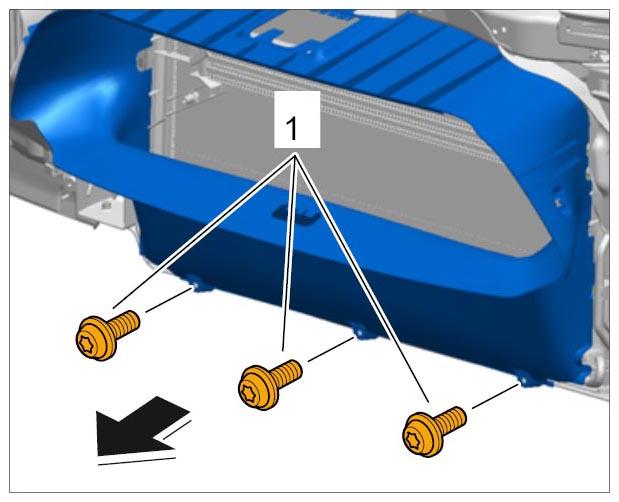

Unscrew three fastening screws -1- and remove lower air guide. → 192419 REMOVING AND INSTALLING CENTRE AIR GUIDE

Fig 2: Removing Fastening Screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Place oil collection pan under the ATF cooler.
WARNING:
Hot fluid
- Danger of scalding
→ Let the fluid cool down.

→ Wear personal protective gear.

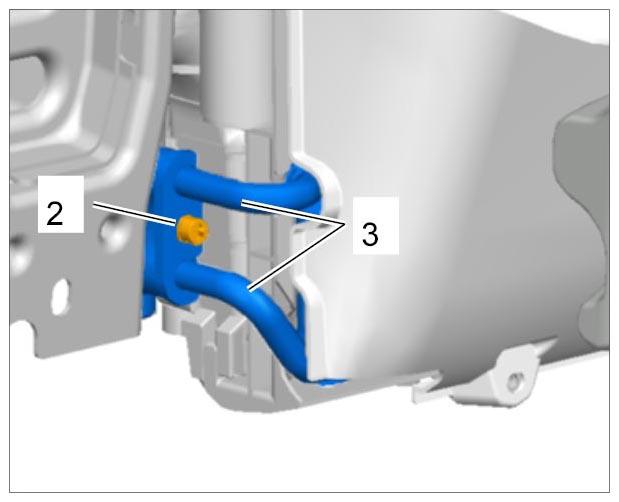

Unscrew fastening screw -2- securing ATF lines -3- to the thermostat.

Fig 3: Identifying ATF Lines
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Pull ATF lines -3- out of the thermostat.
Drain ATF and close off ends of lines.

Fig 4: Removing ATF Cooler
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

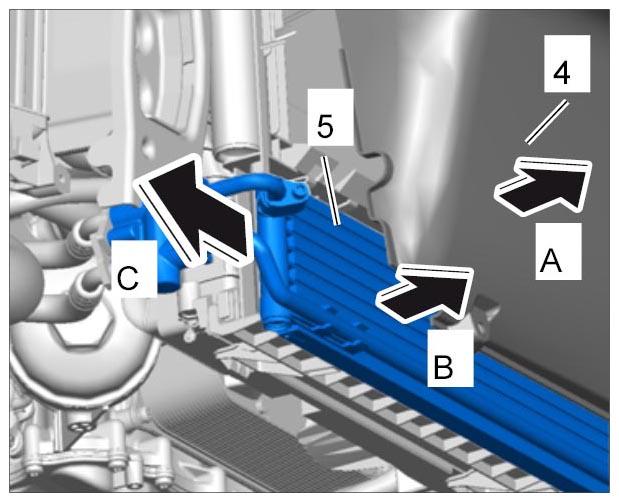

Carefully pull the centre air guide -4- forward -arrow A- .
Unclip ATF cooler -5- (-arrow B- ).
Pull ATF cooler -5- to the right and out -arrow C- .
