Installing ATF Cooler

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Hot fluid

Danger of scalding

→ Let the fluid cool down.

→ Wear personal protective gear.

Fit and clip in ATF cooler.
Insert ATF lines into the thermostat. Check sealing rings and replace if necessary.
Tighten fastening screw used to secure ATF line to the thermostat → Tightening torque: 8 Nm (6 ftlb.)+/-0.8 Nm (+/-0.5 ftlb.) .

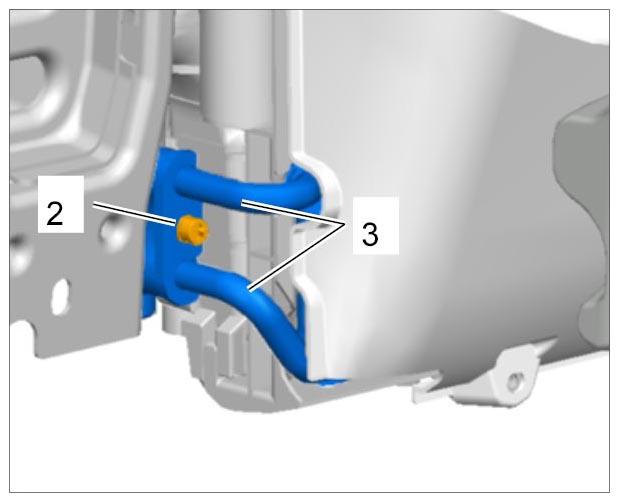

Fig 1: Identifying ATF Lines
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Tighten the three fastening screws used to secure the centre air guide to → Tightening torque: 5 Nm (3.5 ftlb.)+/-0.5 Nm (+/-0.5 ftlb.) → 192419 REMOVING AND INSTALLING CENTRE AIR GUIDE
