Removing Transmission-Oil Pump

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

To prevent dirt from getting into the system, clean the area around the transmission-oil pump thoroughly before removal

  1. Pull off cable plug -arrow-  .
  2. Unscrew M8 fastening screws -1 to 4-  in the specified sequence.
  3. Remove transmission-oil pump and seal.

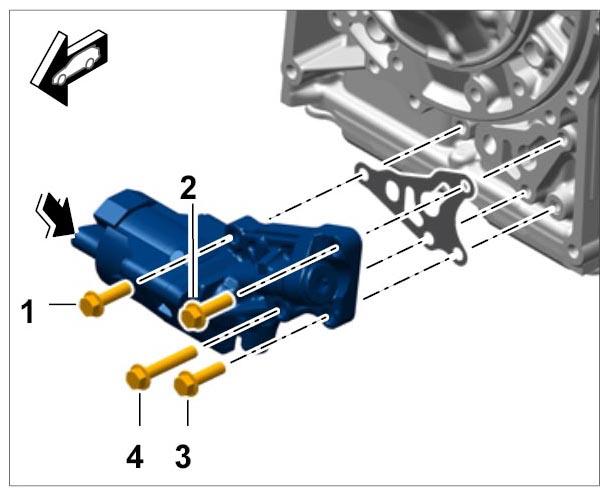

    Fig 1: Transmission-Oil Pump Screws Loosening Order
    G09934582Courtesy of PORSCHE CARS NORTH AMERICA, INC.
