Installing Transmission-Oil Pump

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Fit transmission-oil pump and new seal.

    Information

    To ensure that the tightening torque will be accurate, make sure that all oil and grease is removed from the screw contact surfaces, screws and thread.

  2. Tighten M8 fastening screws -1 to 4-  in the specified sequence. → Tightening torque: 30 Nm (22 ftlb.)

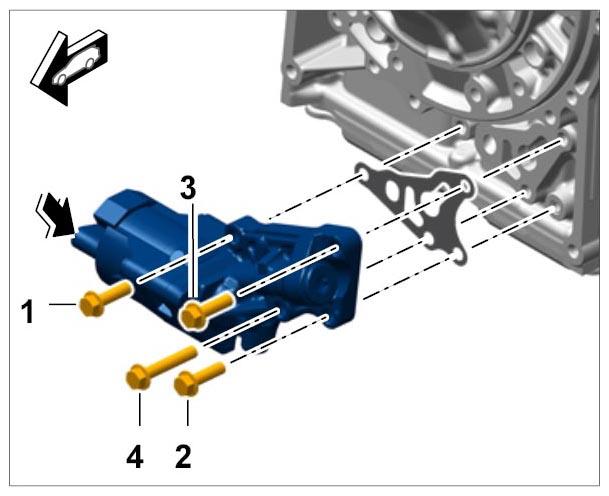

    Fig 1: Transmission-Oil Pump Screws Tightening Sequence
    G09934583Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. Plug in cable plug -arrow-  .
