Removing Primary Catalytic Converter On Cylinder Bank 1-4

→ Let hot components cool down.

→ Wear personal protective gear.

1. Disconnect the oxygen sensor connector for the oxygen sensor behind the catalytic converter at the water splash panel (follow cable routing) and unclip the cables from the holder. → Oxygen sensor connector
   Fig 1: Identifying Oxygen Sensor Connector

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Expose oxygen sensor cable -1-  and route it down to the primary catalytic converter.

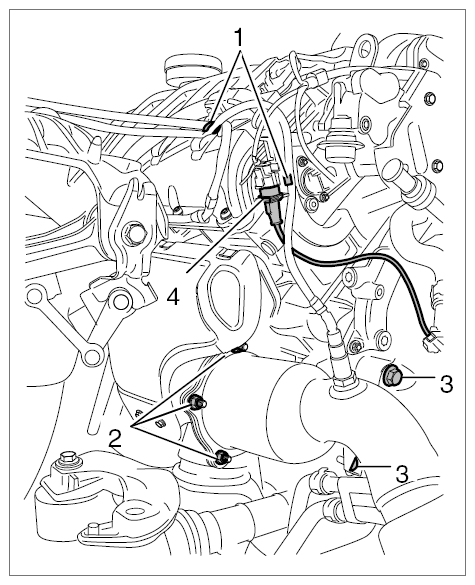

   Fig 2: Identifying Catalytic Converter On Naturally Aspirated Engine

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. Remove sheetmetal holders for the primary catalytic converter -7, 8, 10-  .

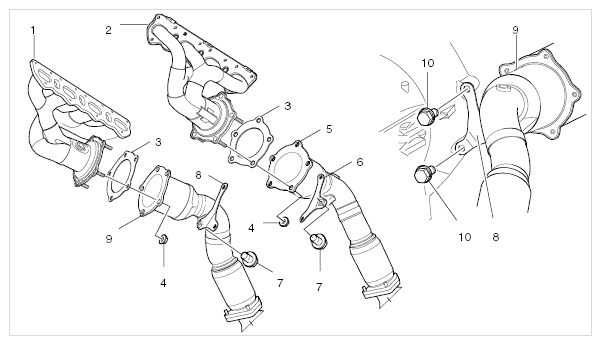

   Fig 3: Identifying Catalytic Converter Holder And Related Components (Naturally Aspirated Engine)

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
   1. Exhaust Manifold, Right
   2. Exhaust Manifold, Left
   3. Seal
   4. Nut
   5. Primary Catalytic Converter, Left
   6. Holder, Left
   7. Screw
   8. Holder, Right
   9. Primary Catalytic Converter, Right
   10. Bolts Between Transmission And Engine (Holder)
   NOTE: Studs and nuts not loosened correctly

   • Threaded bolts can break off exhaust manifold

   → Replace damaged exhaust manifold.

   → Clean the studs and nuts on the exhaust manifold before loosening them and spray with anti-rust agent.

   → Loosen nuts carefully. Loosen the nuts by carefully turning them in both directions if they are very stiff.

   → Heat the threaded joint if necessary.

4. Carefully loosen the flange nuts using a change-over ratchet and several extensions. -2- → Flange bolts securing primary catalytic converter to exhaust manifold
   Fig 4: Identifying Catalytic Converter On Naturally Aspirated Engine

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   1 to 5  - Tightening sequence for nuts

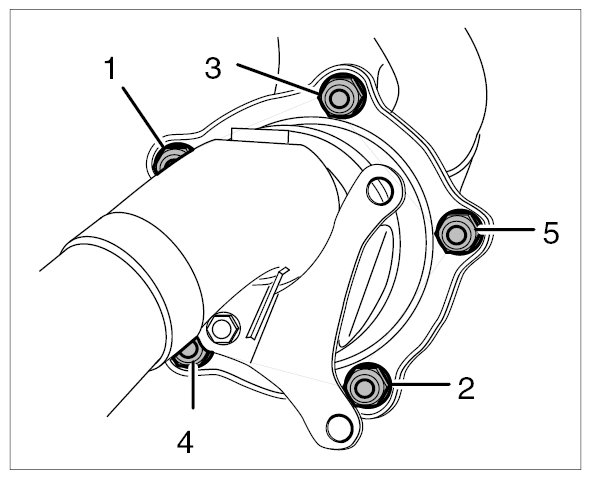

   Fig 5: Identifying Catalytic Converter To Exhaust Manifold Nut Tightening Sequence

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
   NOTE: Projecting ceramic catalytic converter

   • Risk of damage to ceramic catalytic converter

   → Ensure that your work area is well illuminated.

   → Carefully guide the projecting ceramic catalytic converter past the studs on the exhaust manifold.

   → Cover and store the ceramic monolith for the primary catalytic converter in a safe place until you are ready to install it.

   → Protect the ceramic monolith from damage while you are working on the primary catalytic converter. If there are deep cracks or large chips, replace the primary catalytic converter. Slight superficial damage will not impair its function.

5. Carefully remove the primary catalytic converter with the help of another worker.
   1. Primary Catalytic Converter
   2. Ceramic Monolith
   3. Exhaust Manifold
   4. Seal
   5. Studs In Exhaust Manifold

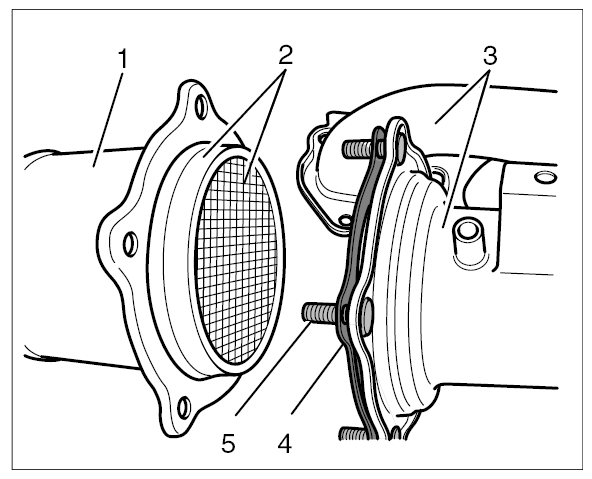

      Fig 6: Identifying Ceramic Monolith Installation Position

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
6. Remove sheetmetal seal -4-  . Clean sealing surfaces.

→ Let hot components cool down.

→ Wear personal protective gear.

Information

• Spray all fastening nuts on primary catalytic converter with penetrating oil and allow to work in  .

Information

• To loosen and tighten fastening nuts on flange of turbocharger, several extensions and joints must be used  .
• Good lighting and a mirror make removal and fitting easier at places very difficult to reach  .

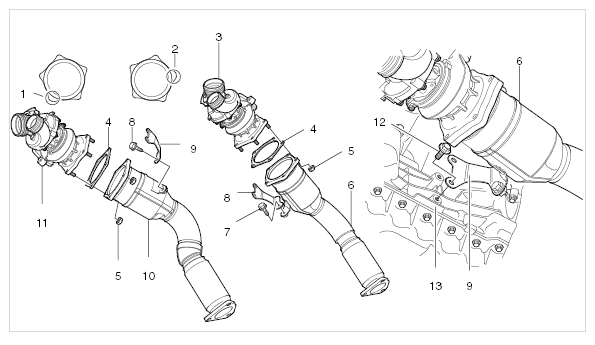

  Fig 1: Identifying Catalytic Converter Holder And Related Components (Turbo Engine)

  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. Positioning Lug On Left Side, Viewed In Direction Of Travel
2. Positioning Lug On Right Side, Viewed In Direction Of Travel
3. Turbocharger, Left
4. Seal
5. Nut
6. Primary Catalytic Converter, Left
7. Screw
8. Sheetmetal Holder (Support)
9. Sheetmetal Holder (Support)
10. Primary Catalytic Converter, Right
11. Turbocharger, Right
12. Screw
13. Mounting Point On Crankcase

1. Disconnect the oxygen sensor connectors for the oxygen sensors on the catalytic converter at the water splash panel (follow cable routing) and unclip the cables from the holders. → Oxygen sensor connectors (figure shows cylinders 1 to 4)
   Fig 2: Identifying Oxygen Sensor Connectors (Cylinders 1 To 4)

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Route the oxygen sensor cables to the catalytic converter. -1-

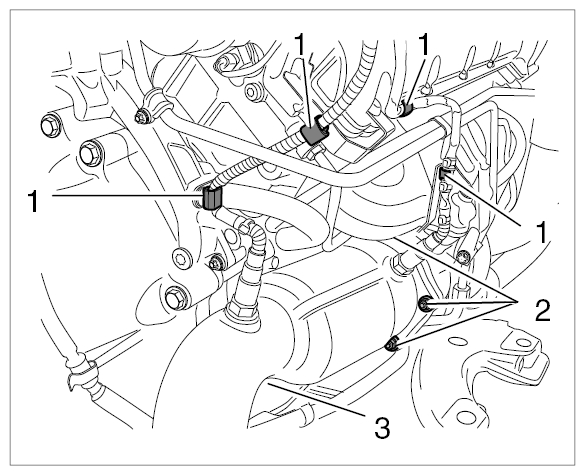

   Fig 3: Identifying Catalytic Converter On Turbo Engine

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. Screw off side catalytic converter holder at the transmission -3-  .
   Fig 4: Identifying On Turbo Engine

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
4. Carefully pull the oxygen sensor cable down.
5. Loosen the five fastening nuts for the turbocharger.

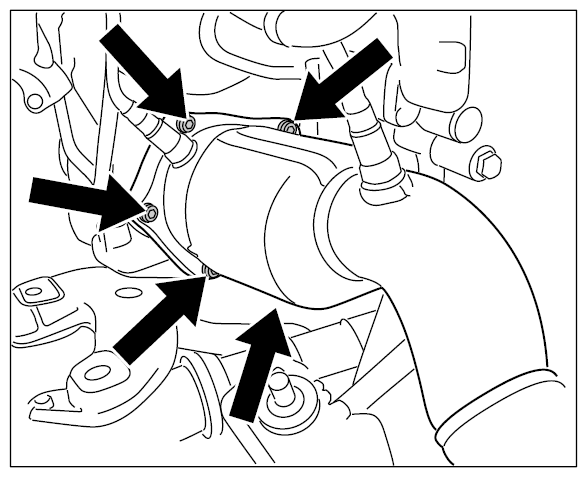

   Fig 5: Locating Catalytic Converter To Turbocharger Fastening Nuts

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
6. Remove primary catalytic converter. To do this, carefully turn and pull the primary catalytic converter.
7. Remove and replace flange gaskets.
