Installing Primary Catalytic Converter On Cylinder Bank 5-8

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Ensure sealing faces of exhaust system are clean.
  2. Replace flange gasket -4-  and slide it over the studs on the exhaust manifold -5-  .
    1. Primary Catalytic Converter
    2. Ceramic Monolith
    3. Exhaust Manifold
    4. Seal
    5. Studs In Exhaust Manifold

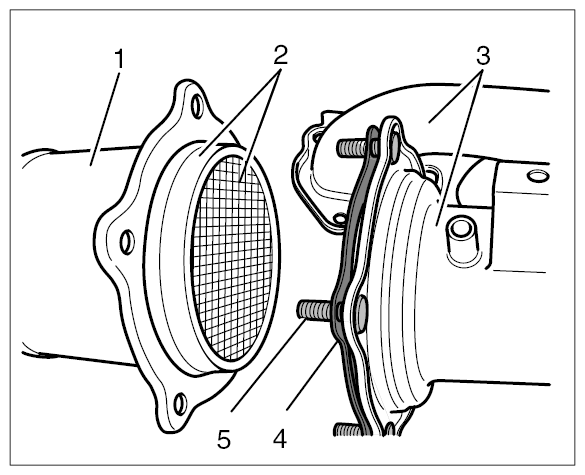

      Fig 1: Identifying Ceramic Monolith And Flange Gasket
      G09933854Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    NOTE: Projecting ceramic catalytic converter
    • Risk of damage to ceramic catalytic converter

    → Ensure that your work area is well illuminated.

    → Carefully guide the projecting ceramic catalytic converter past the studs on the exhaust manifold.

    → Cover and store the ceramic monolith for the primary catalytic converter in a safe place until you are ready to install it.

    → Protect the ceramic monolith from damage while you are working on the primary catalytic converter. If there are deep cracks or large chips, replace the primary catalytic converter. Slight superficial damage will not impair its function.

  3. Carefully move primary catalytic converter into installation position.
  4. Fit new fastening nuts between the exhaust manifold and primary catalytic converter, but leave them loose.
  5. Make sure that the sheetmetal holder for the primary catalytic converter fits correctly on the exhaust manifold after you tighten the nuts -8-  .

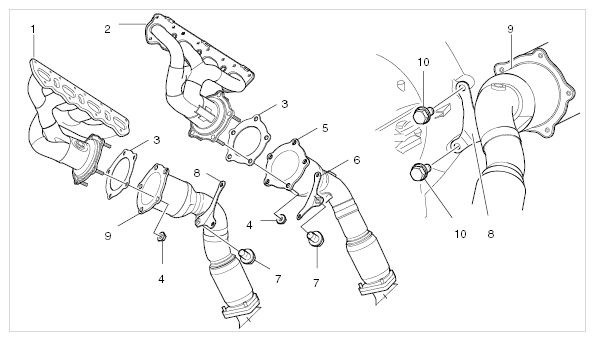

    Fig 2: Identifying Catalytic Converter Holder Related Components - Naturally Aspirated Engine
    G09933855Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    1. Exhaust Manifold, Right
    2. Exhaust Manifold, Left
    3. Seal
    4. Nut
    5. Primary Catalytic Converter, Left
    6. Holder, Left
    7. Screw
    8. Holder, Right
    9. Primary Catalytic Converter, Right
    10. Bolts Between Transmission And Engine (Holder)
  6. Fit fastening screw on catalytic converter holder and nuts to the specified tightening torque and according to the specified tightening sequence → Flange bolts securing primary catalytic converter to exhaust manifold → Tightening Torque: 23 Nm (17 ft. lb.) → Tightening Torque: 23 Nm (17 ft. lb.)  . For details of tightening torque for transmission screws, see Removing and installing transmission or Removing and mounting transmission.

    1 to 5  - Tightening sequence for nuts

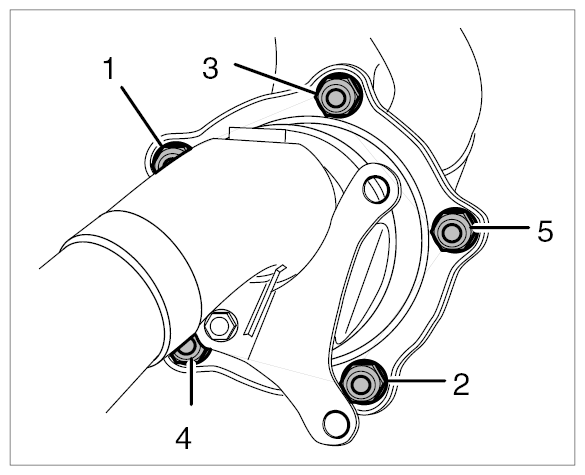

    Fig 3: Identifying Primary Catalytic Converter To Exhaust Manifold Flange Nut Tightening Sequence
    G09933856Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    WARNING: Cables not fitted or removed correctly
    • Risk of burns
    • Risk of short circuit or fire.

    → Check for correct fitting.

    → Replace damaged components.

  7. Lay oxygen sensor cable and clip it in. -1-

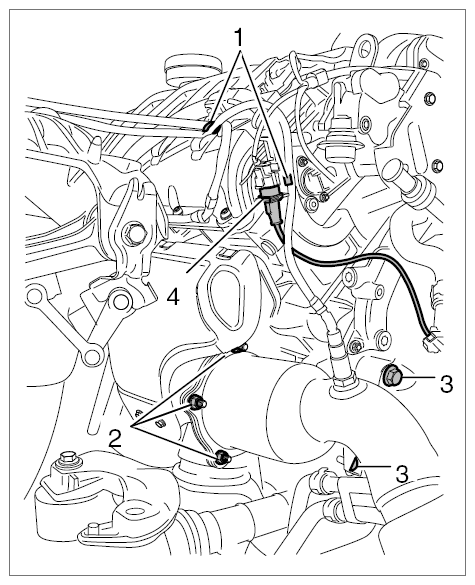

    Fig 4: Identifying Catalytic Converter On Naturally Aspirated Engine
    G09933857Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  8. Fit heat shield on the cardan joint of the steering column. -arrows- → Tightening Torque: 10 Nm (7.5 ft. lb.)

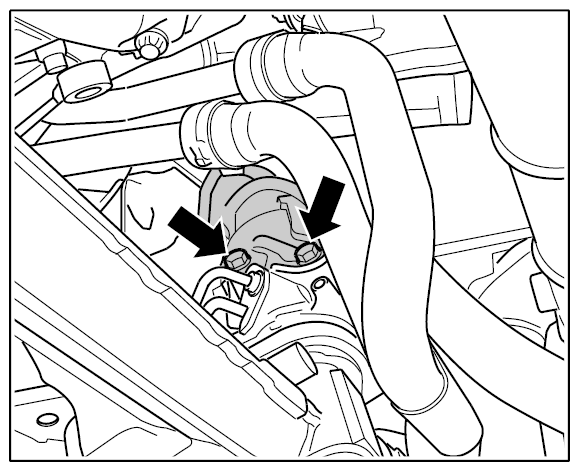

    Fig 5: Locating Heat Shield On Steering Gear
    G09933858Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  9. Fit coolant pipe on converter bell housing -arrow-  . → Tightening Torque: 9 Nm (6.5 ft. lb.)

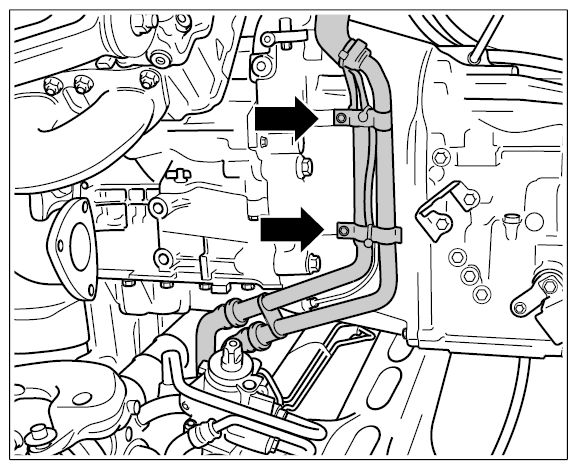

    Fig 6: Locating Coolant Pipes On Converter Bell Housing
    G09933859Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  10. Plug in the connector for the oxygen sensor behind the catalytic converter at the water splash panel.


Information

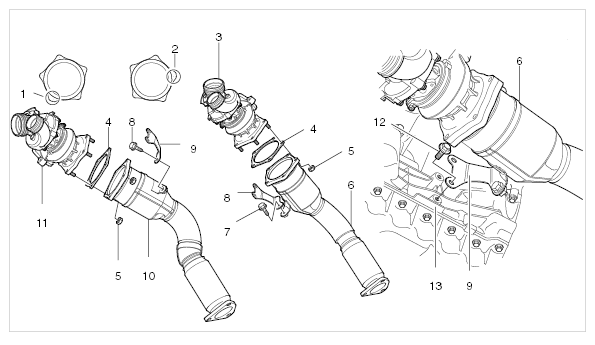

  1. Replace flange gasket and push over the studs of the turbocharger.
  2. Position the primary catalytic converter on the bolts on the turbocharger. To do this, carefully turn and pull the primary catalytic converter. Move the steering if necessary and move the primary catalytic converter into installation position.

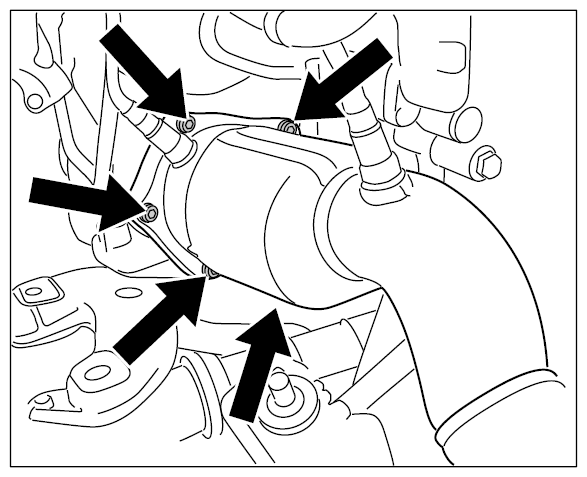

    Fig 2: Placing Primary Catalytic Converter On Studs Of Turbocharger
    G09933876Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. Fit side catalytic converter holders.
  4. Position new self-locking nuts at the connection points of the catalytic converter and tighten to the specified tightening torque. → Tightening Torque: 23 Nm (17 ft. lb.)
  5. Tighten side catalytic converter holders to the specified tightening torque → Tightening Torque: 23 Nm (17 ft. lb.)  . For details of transmission flange screws, see → 373519 REMOVING AND INSTALLING TRANSMISSION
  6. Fit the heat shield on the steering gear connection. To do this, fit the fastening screws. → Tightening Torque: 10 Nm (7.5 ft. lb.)
    Fig 3: Locating Fastening Screws Securing Heat Shield To Steering Gear Connection
    G09933877Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    WARNING: Cables not fitted or removed correctly
    • Risk of burns
    • Risk of short circuit or fire.

    → Check for correct fitting.

    → Replace damaged components.

  7. Route oxygen sensor cables upwards so that the oxygen sensor cables are not touching the exhaust manifold or the exhaust system and clip them into position -1-  . A useful aid here is a piece of wire with a hook.

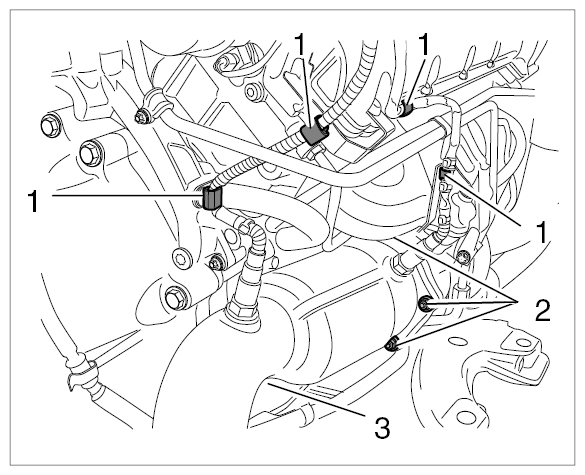

    Fig 4: Identifying Catalytic Converter On Turbo Engine
    G09933878Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  8. Connect the oxygen sensor connectors for the oxygen sensors at the water splash panel and clip the cables into the holders. → Oxygen sensor connectors (figure shows cylinders 1 to 4)
    Fig 5: Identifying Oxygen Sensor Connectors
    G09933879Courtesy of PORSCHE CARS NORTH AMERICA, INC.
