Removing Left Catalytic Converter

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Hot components

Risk of burns

→ Let hot components cool down.

→ Wear personal protective gear.

Remove engine compartment cover.
Remove oxygen sensor 2 downstream of catalytic converter.
Screw off nuts that can be reached from above -2- .

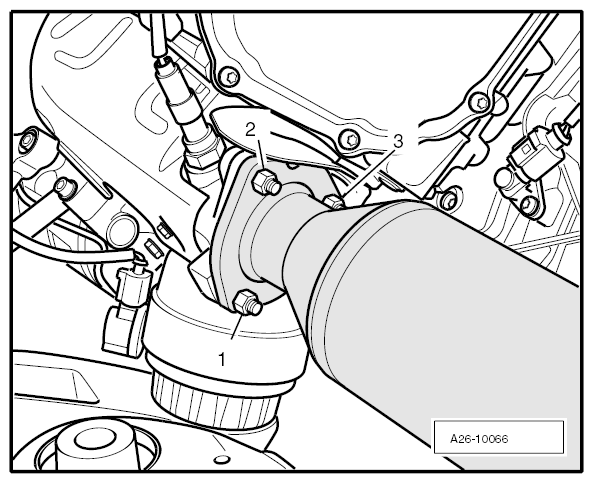

Fig 1: Identifying Catalytic Converter To Exhaust Manifold Nuts
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Screw off mounting for catalytic converter -right arrow- .

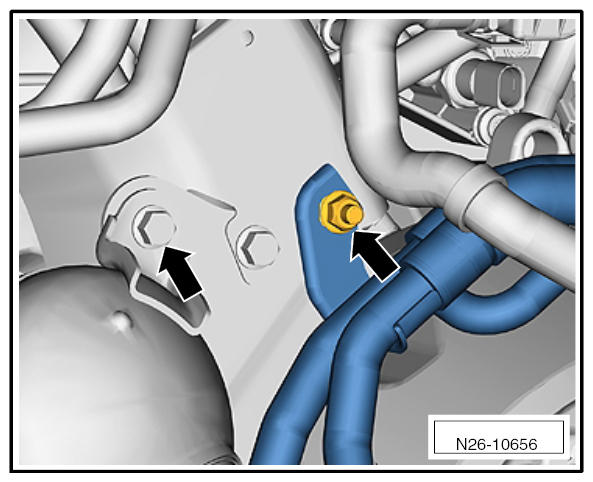

Fig 2: Locating Catalytic Converter Mounting Nut
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove left front silencer -A- .

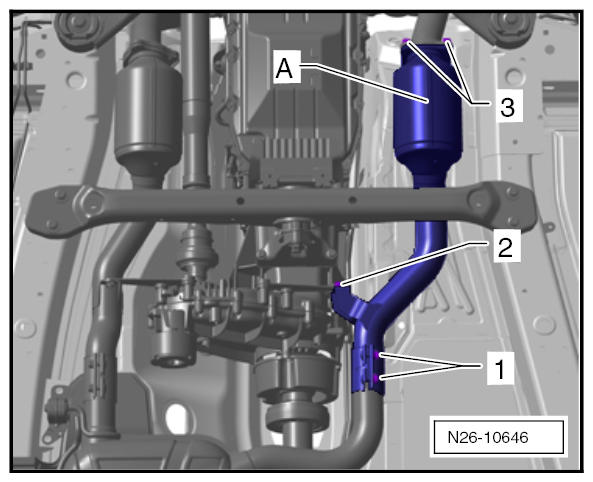

Fig 3: Identifying Left Front Silencer
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Screw off nuts that can be reached from below -1- and -3- from connection for front exhaust pipe on the exhaust manifold.

Fig 4: Identifying Catalytic Converter To Exhaust Manifold Nuts
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove catalytic converter.
