Preliminary Work

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove cardan shaft. → REMOVING FRONT CARDAN SHAFT - section on "Removing"
  2. Remove air guide pipe.
    1. 2.1. Loosen hose clamps. -arrows-

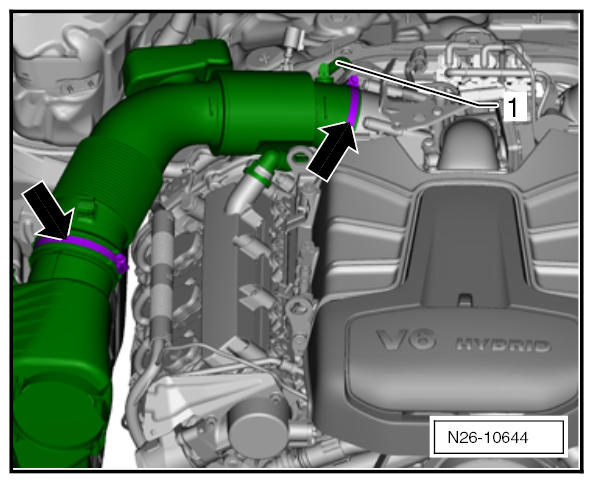

      Fig 1: Locating Air Guide Pipe
      G09933809Courtesy of PORSCHE CARS NORTH AMERICA, INC.
