Catalytic Converter And Front Silencer

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

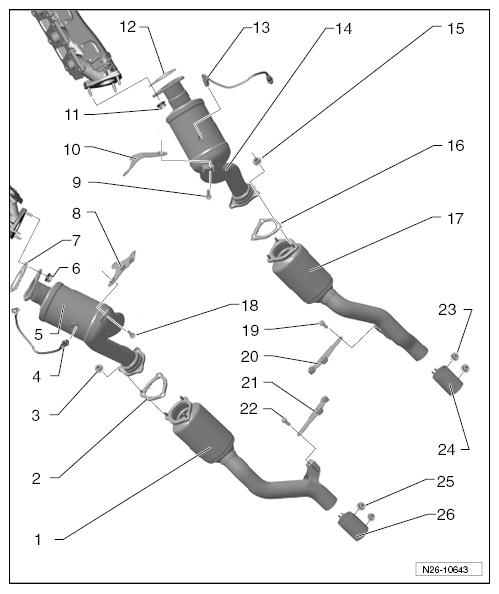

Fig 1: Overview Of Catalytic Converters And Front Silencers Assembly
G09933818Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Left Front Silencer
  2. Seal Replace
  3. Nut Replace → Tightening Torque: 23 Nm (17 ft. lb.)
  4. Oxygen Sensor 2 Downstream Of Catalytic Converter
  5. Catalytic Converter For Cylinder Bank 2 (Left)
  6. Nut Replace → Tightening Torque: 23 Nm (17 ft. lb.)
  7. Seal Replace
  8. Support For Left Catalytic Converter
  9. Screw → Tightening Torque: 23 Nm (17 ft. lb.)
  10. Support For Right Catalytic Converter
  11. Nut Replace → Tightening Torque: 23 Nm (17 ft. lb.)
  12. Seal Replace
  13. Oxygen Sensor Downstream Of Catalytic Converter
  14. Catalytic Converter For Cylinder Bank 1 (Right)
  15. Nut → Tightening Torque: 23 Nm (17 ft. lb.)
  16. Seal Replace
  17. Right Front Silencer
  18. Screw → Tightening Torque: 23 Nm (17 ft. lb.)
  19. Screw → Tightening Torque: 23 Nm (17 ft. lb.)
  20. Support For Right Front Silencer
  21. Support For Left Front Silencer
  22. Screw → Tightening Torque: 23 Nm (17 ft. lb.)
  23. Nut → Tightening Torque: 35 Nm (26 ft. lb.)
  24. Right Clamping Sleeve
  25. Left Clamping Sleeve
  26. Nut → Tightening Torque: 35 Nm (26 ft. lb.)
