Preliminary Work

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

With Engine Installed →

Remove high-pressure pump on cylinder bank 5 to 8. → 246319 REMOVING AND INSTALLING HIGH-PRESSURE PUMP
Pull off cable plug on solenoid valve for valve lift switchover.
Remove vacuum pump on cylinder bank 1 to 4. → 477619 REMOVING AND INSTALLING VACUUM PUMP
Pull off cable plug on solenoid valve for valve lift switchover.
If Cylinder Head Is Replaced →
Remove screw plug with sealing ring. -1-

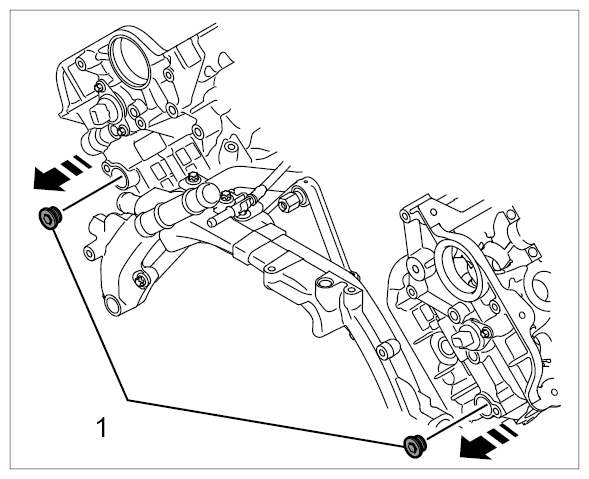

Fig 1: Removing Screw Plug From Secondary-Air Duct
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. Screw plug on secondary-air duct; if re-used: → Tightening Torque: 10 Nm (7.5 ft. lb.)
