Installing Secondary Air Valve

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Fit secondary air valve with a new, lightly greased sealing ring into the cylinder head.

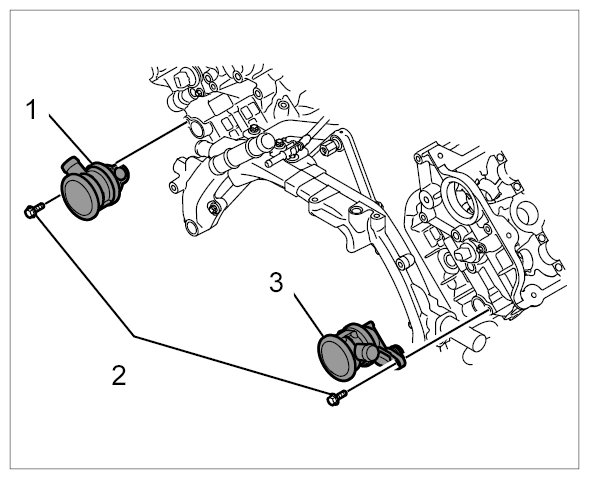

    Fig 1: Identifying Secondary Air Valves Installation Position
    G09933789Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Fit secondary air valve with an M6 screw. → Tightening Torque: 10 Nm (7.5 ft. lb.)  Fit secondary air valve connections.
  3. Fit secondary-air hoses.
