Component Overview

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

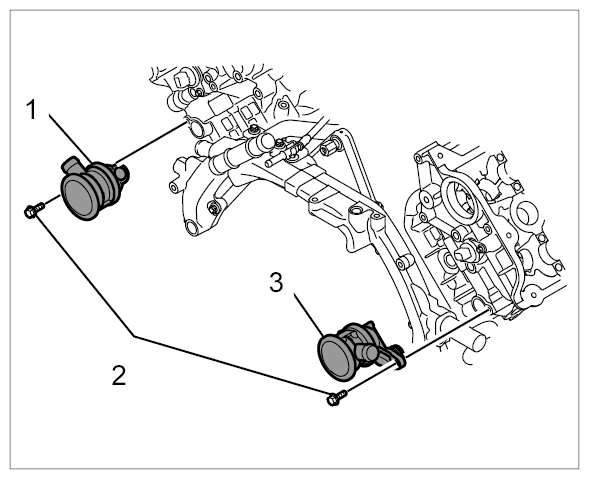

Fig 1: Identifying Secondary Air Valves Installation Position
G09933785Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Secondary Air Valve, Cylinder Bank 5 To 8
  2. M6 Screw
  3. Secondary Air Valve, Cylinder Bank 1 To 4

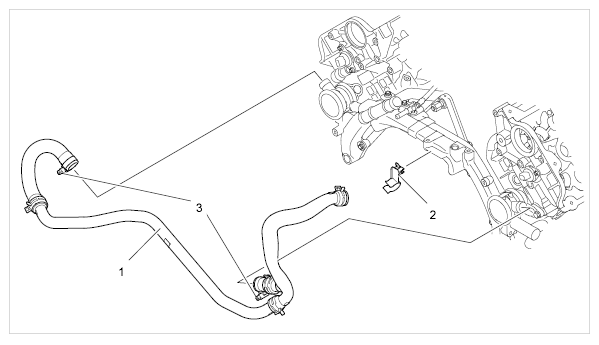

Fig 2: Identifying Secondary-Air Hoses Related Components
G09933786Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Secondary-Air Pipe
  2. Holder With Clamp
  3. Clamp
