Removing Right Combination Valve For Secondary Air

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Unscrew screws -arrows-  and remove the heat shield -1-  .

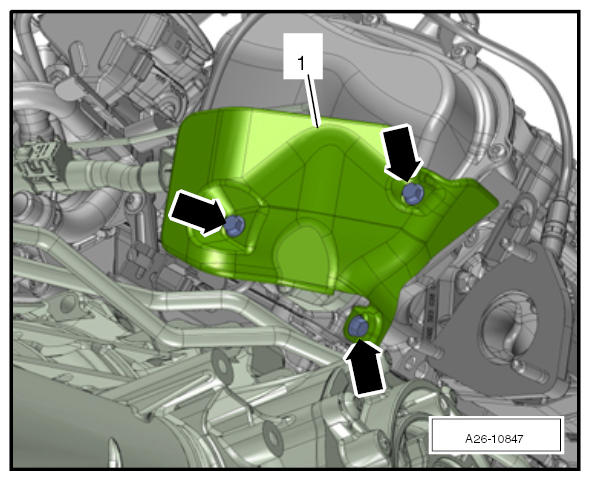

    Fig 1: Locating Heat Shield On Right Combination Valve
    G09933793Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Remove combination valve:
    1. 2.1. Pull vacuum line -2-  off the combination valve for secondary air.
    2. 2.2. Unscrew screws -3-  , pull off combination valve and unscrew screws -1-  for secondary air pipe.

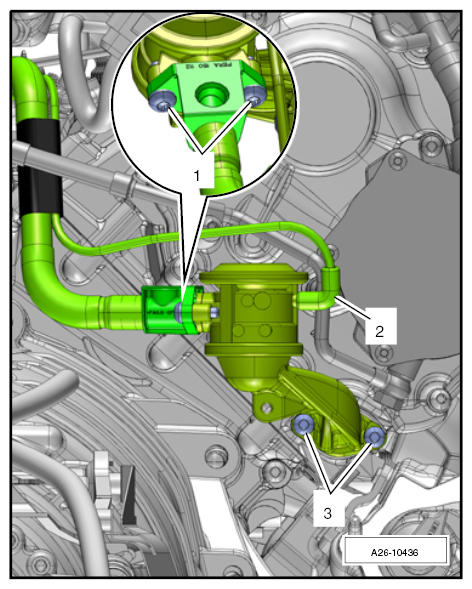

      Fig 2: Identifying Right Combination Valve
      G09933794Courtesy of PORSCHE CARS NORTH AMERICA, INC.
