Assembly Overview - Air Injection System

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

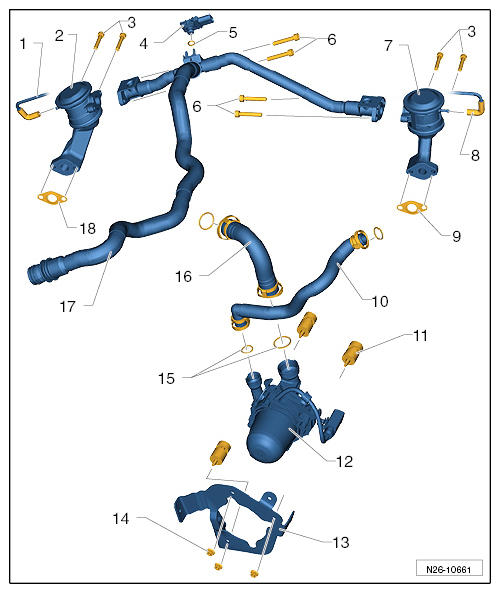

Fig 1: Overview Of Air Injection System Assembly
G09933790Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Vacuum Hose From Secondary-Air Injection Valve 1
  2. Right Combination Valve For Secondary Air
  3. Screws → Tightening Torque: 9 Nm (6.5 ft. lb.)
  4. Sender 1 For Secondary Air Pressure
  5. O-ring Replace
  6. Screws → Tightening Torque: 5 Nm (3.5 ft. lb.)
  7. Left combination valve for secondary air
  8. Vacuum hose from secondary-air injection valve 2
  9. Seal Replace
  10. Hose For Secondary Air On Pressure Side
  11. Rubber-Metal Mount
  12. Motor For Secondary Air
  13. Holder/Riveted To Body
  14. Nut → Tightening Torque: 9 Nm (6.5 ft. lb.)
  15. O-rings Replace If Damaged
  16. Hose For Secondary Air On Intake Side
  17. Secondary Air Pipe
  18. Seal Replace
