Removing Secondary-Air Pump

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove secondary-air pump.
    1. 1.1. Release and disconnect electric connector -1-  and unclip it from the holder
    2. 1.2. Loosen hose clamp -2-  and pull off secondary air hose -3-  .
    3. 1.3. Unscrew fastening screws -4-  . Remove secondary-air pump -5-  .

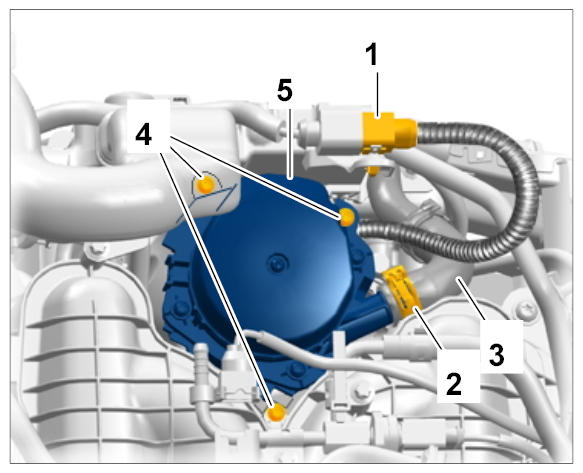

      Fig 1: Identifying Secondary-Air Pump And Related Components
      G09933780Courtesy of PORSCHE CARS NORTH AMERICA, INC.
