Removing Tailpipes

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Hot components
  • Risk of burns

→ Let hot components cool down.

→ Wear personal protective gear.

Information

This description also applies for all other tailpipe variants (single or dual pipe)

  1. Loosen fastening screw -arrow-  on ball clamp.

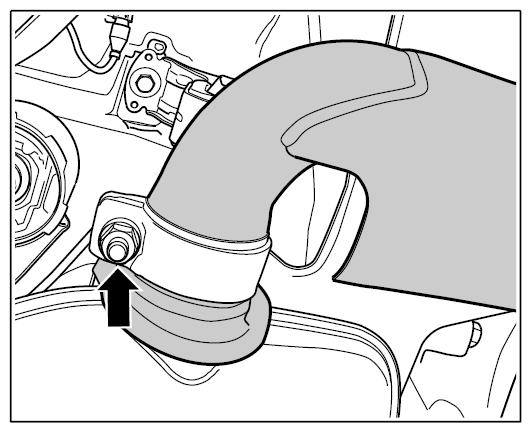

    Fig 1: Locating Fastening Screw Of Tailpipe
    G09933778Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Loosen tailpipes by turning and pulling off.
